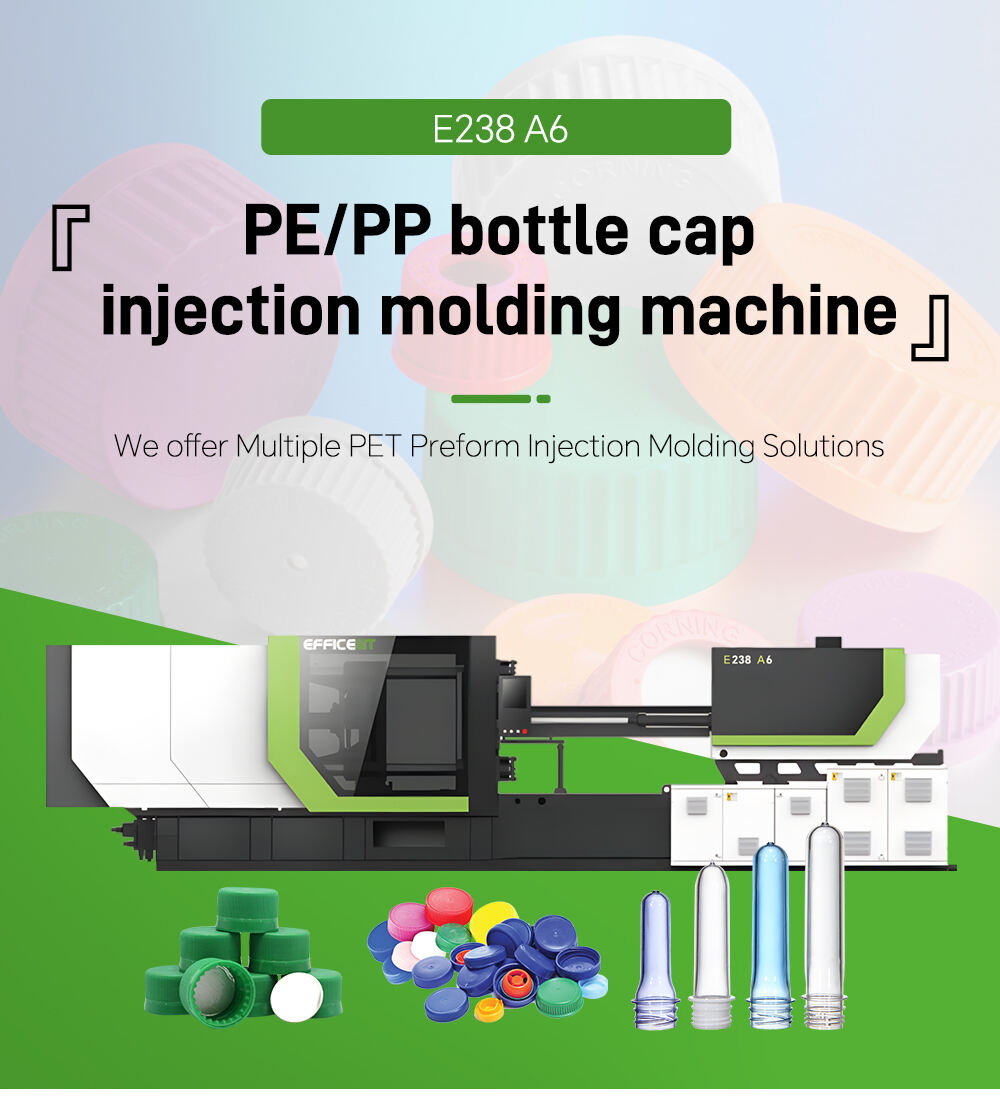

PE/PP bottle cap injection molding machine

Home >  Products >  Product Series >  PE/PP bottle cap injection molding machine

All Categorys

Product Series
Industry Application

All Small Categorys

Product Series
Industry Application

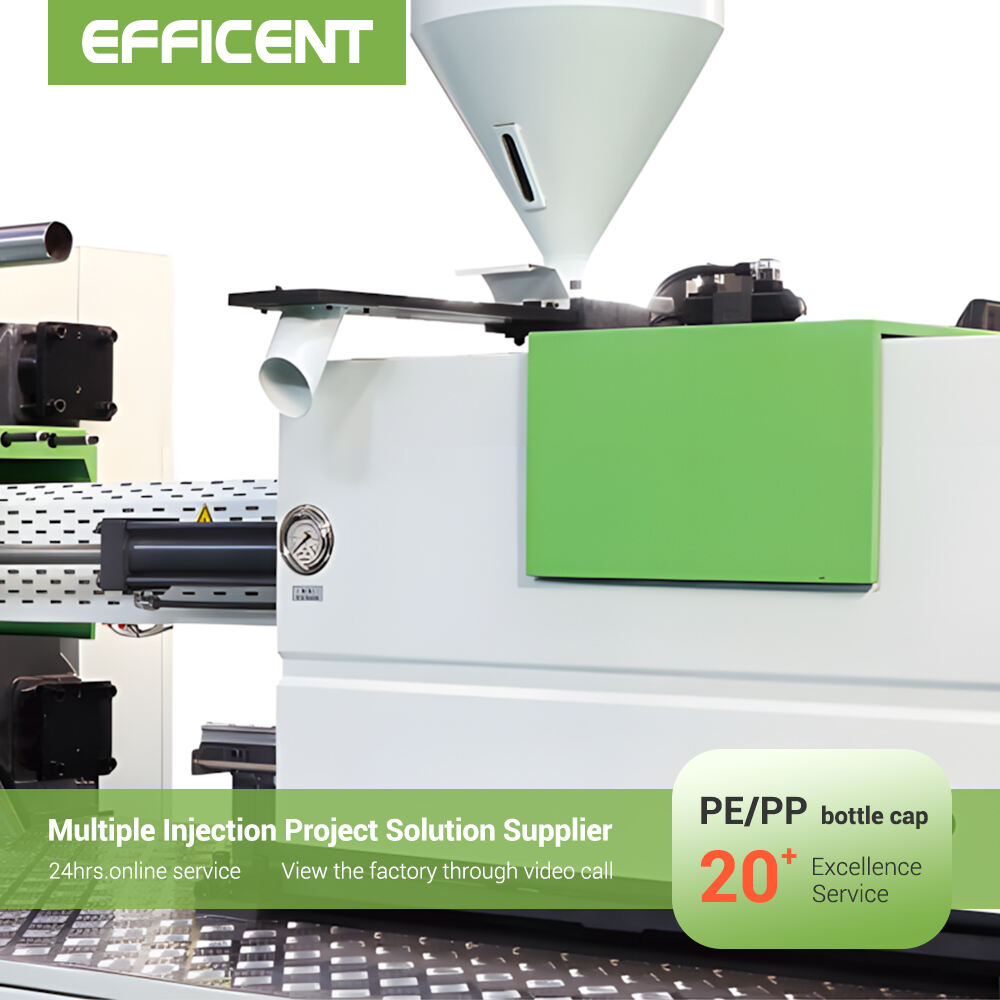

Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine
Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine

Automatic 500ml 1000ml 2000ml Plastic Water Bottle Cap Injection Moulding Machine

Get a Quote Inquiry
  • Description
Free Analysis – Chat with Our Engineers Now

Free Analysis – Chat with Our Engineers Now

86-512-58990369
[email protected]
Inquiry

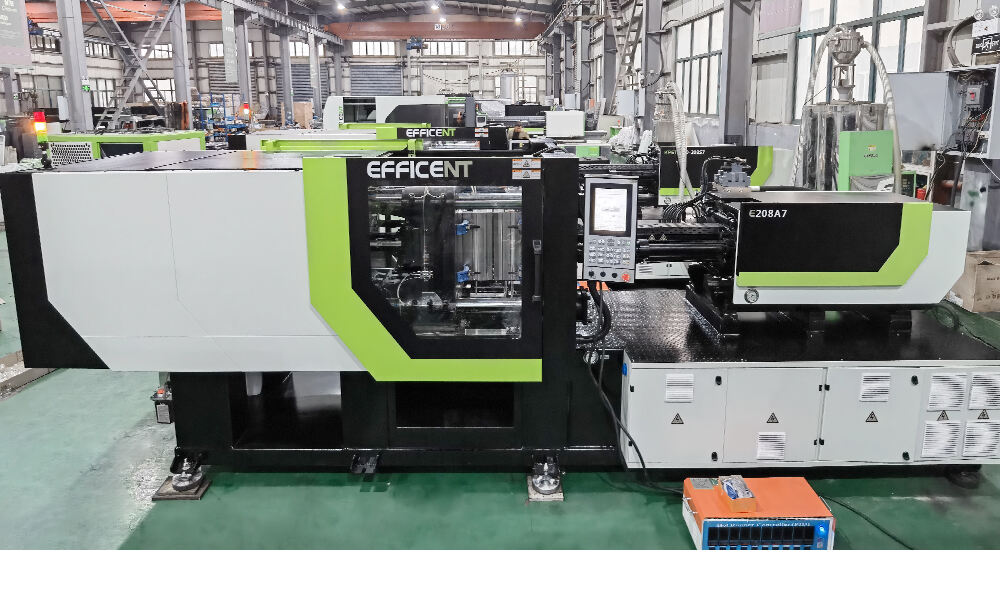

Specifications E208 A7 E258 A7
Screw Diameter mm 45 50 55 45 50 55
Injection pressure Mpa 210 170.2 140.7 210 170.2 140.7
Screw L/D Ratio L/D 24.4 22 20 24.4 22 20
injection rare(PS) g/s 145.5 179.6 217.3 184.7 228 276
Theoretical shot volime cm³ 382.0 471.0 570.0 382.0 471.0 570.0
Shot Weight(PET) G/0.91 347.62 428.61 518.7 347.62 428.61 518.7
OZ 12.3 15.1 18.3 12.3 15.1 18.3

Clamping Force KN 2080 2580
Opening Stroke mm 450 450
Distance between tie-bars mm 520x520 570x570
Movable platen size mm 760x760 840x840
Max.mold height mm 550 580
Min.mold height mm 220 250
Ejector Stroke mm 150 150
Ejector Force KN 75 75
Numbet of ejector pins 4+1 4+1 4+1 4+1 4+1 4+1

Pump Motor Power KW 23kw 27.8kw
Heating capacity Mpa 16 16
Machine Size(LxWxH) L 320 380
Machine Weight KW 15 15
Outline size  m 5.7*1.45*1.7 5.9*1.5*1.8
Net weight T 5.5 5.5 5.5 7.3 7.3 7.3










Ningbo Efficient Machine & Mould Co., Ltd.

Welcome to EFFICIENT Intelligent Equipment, your trusted partner in PET preform injection molding, based in Ningbo, China—the core of the plastics machinery industry! We stand among the world's top providers of end-to-end PET packaging solutions, specializing in innovative bottle preform systems that empower brands across beverages, cosmetics, pharmaceuticals, and FMCG sectors.​

With decades of expertise as a leading Chinese manufacturer, we've gained the trust of clients in over 85 countries, delivering top-tier PET preform injection molding solutions.

Our expertise lies in PET preform injection molding. Our R&D team, led by industry veterans including former HUSKY (Canada) senior engineers, as well as experts from China's "Thousand Talents Plan" (Dr. Rong & Dr. Liu), drives innovation in every machine.  Whether it's standard models or high-speed production systems, we craft equipment that combines precision, durability, and energy efficiency, outperforming global benchmarks.​

We have a global reach with expanding direct EFFICIENT-branded exports worldwide, while ensuring local support for seamless service. No matter if you're a startup scaling up or an industry leader optimizing production, our solutions cater to your needs in diverse sectors.​








automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-1
automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-2 automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-3 automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-4
automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-5 automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-6 automatic 500ml 1000ml 2000ml plastic water bottle cap injection moulding machine-7



Take 500/550ml, gram weight 12.8g-16g, and 48-cavity with preform weight 13.5g as an example, The outputcapacity of EFFlCIENT solution is about 20% higher than that of competing products of the same model in the marketThe output of preforms is about 700 kg more per day, and the output of preforms per month is about 21fons. Calculated at a profit of US$80/ton for PET preforms, each month you can have US$1,615 more proft wit EFFICIENT Solution.

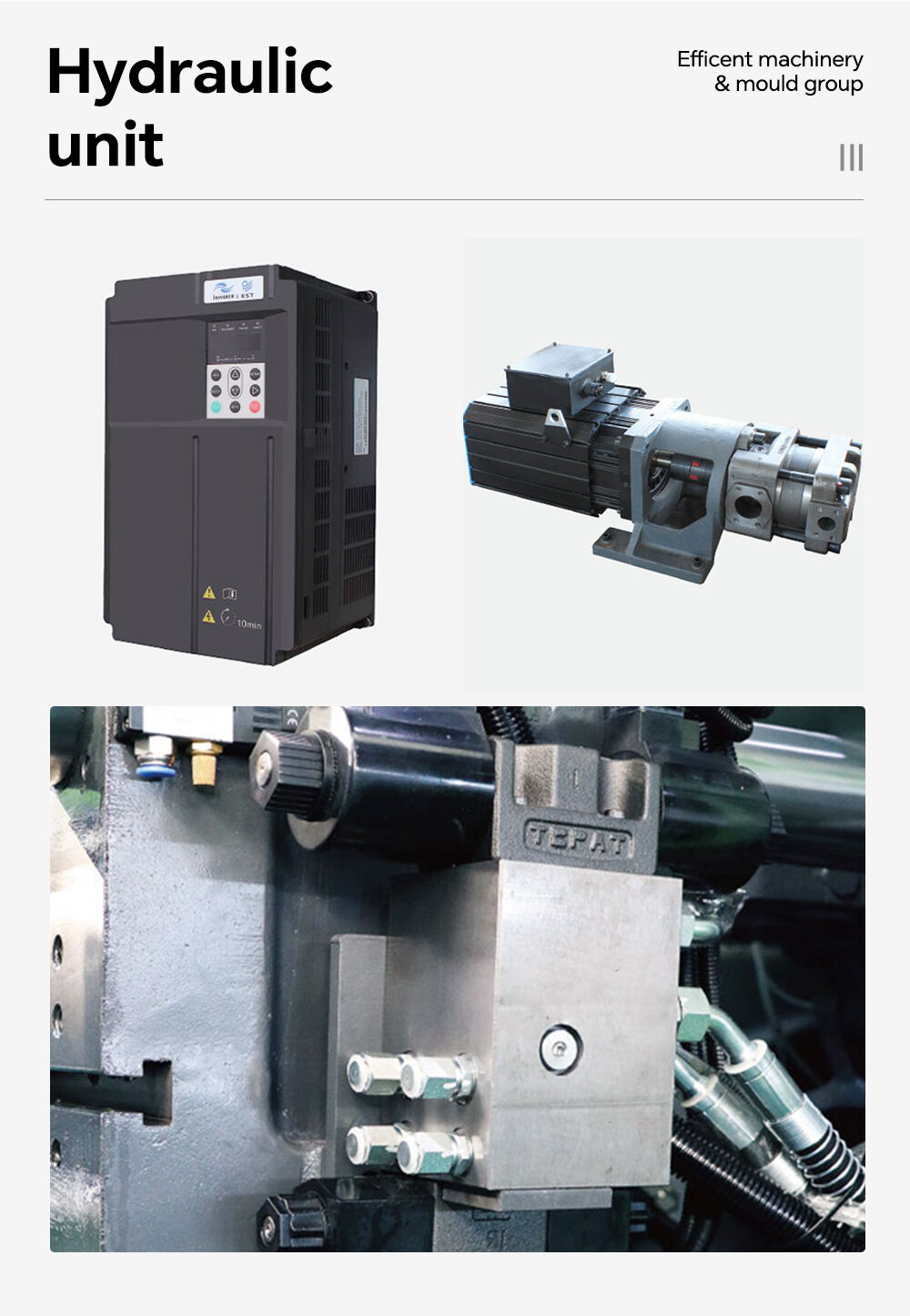

1. It adopts a servo system of a world-famous factory-branded high-voltage gear pump with a Japanese or German brand, with high response speed and control accuracy, saving about 30% to 80%.

2. All hydraulic components are made of products from world-renowned manufacturers to ensure the stability and durability of the machine operation.

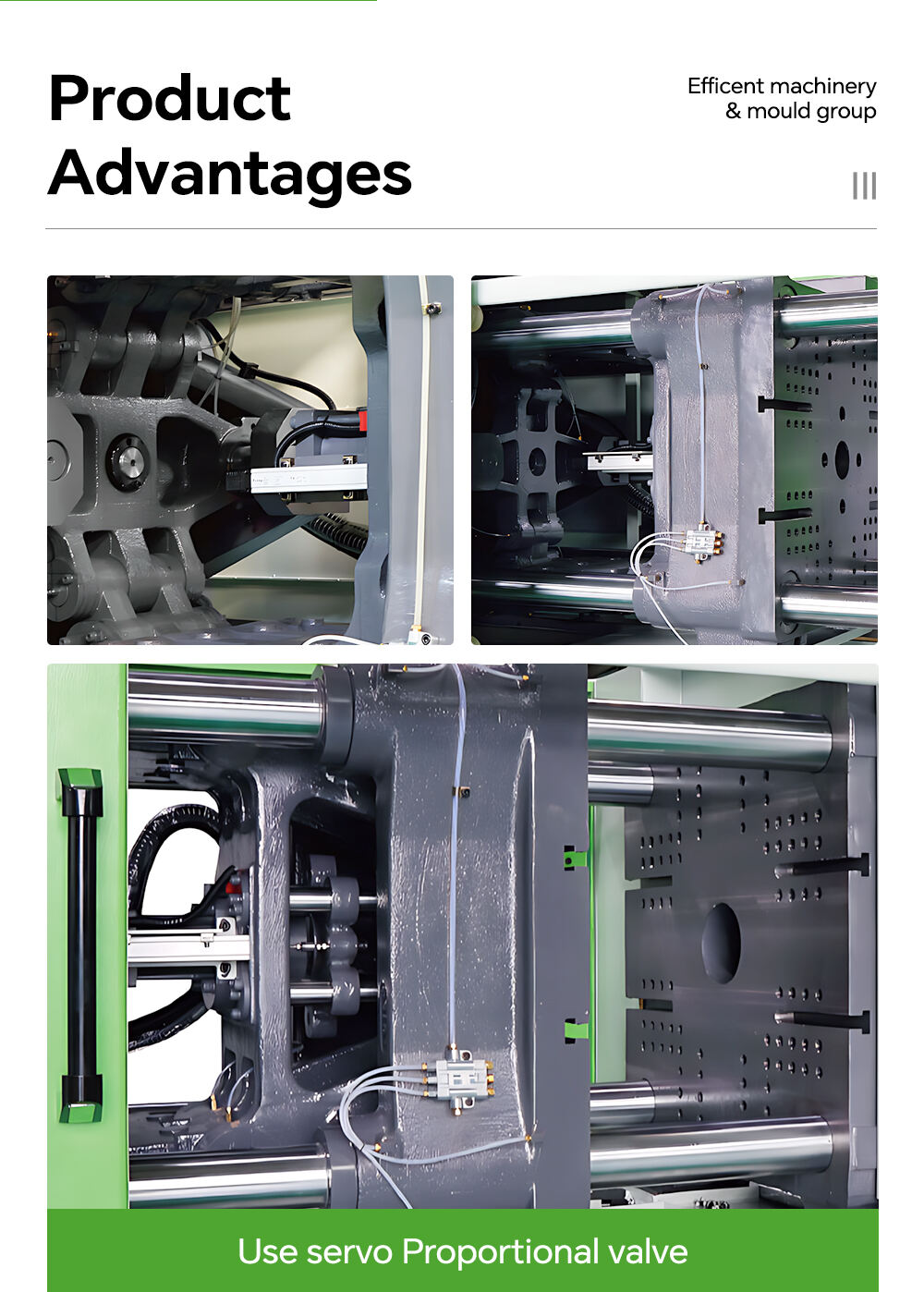

3. The proportional backpressure control is adopted to make the process adjustment range wider and the product is more stable.

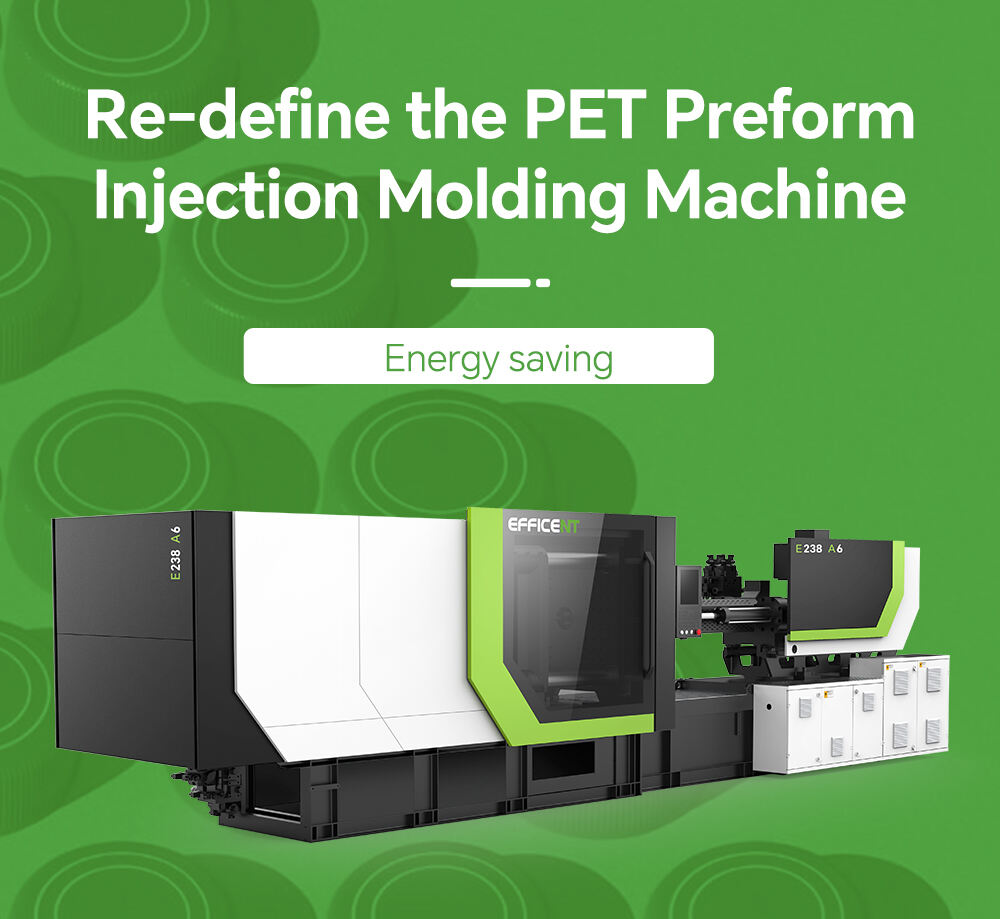

Re-define the PET Preform Injection Molding Machine

As the competition in the PET preform market becomes more and more intense, and the profit becomes less, the transformation and upgrading of the preform production process and cost control have become the top prionty to all PET relevant products manufacturers. The two core factors that restrict the production cost of preforms are the cycle time and energy consumption.Therefore, the requirements for the cycle time and energy consumption of the PET lMM getting higher and higher. Most of the injection molding machines used on the market are from general-purpose lMM, only by simply changing the screw & barrel unit, not specially desgned for PET preform mold and PET material. EFFlCiENT has been focusing on high-speed preform injection molding system for many years, and has successfully developed a series of special PET injection molding machines in an essential sense. These special high speed PET injection molding machines can help our clients solve this difficult problems from the root.
