Description

Screw Diameter	mm	45	50	55	45	50	55
Injection pressure	Mpa	210	170.2	140.7	210	170.2	140.7
Screw L/D Ratio	L/D	24.4	22	20	24.4	22	20
injection rare(PS)	g/s	145.5	179.6	217.3	184.7	228	276
Theoretical shot volime	cm³	382.0	471.0	570.0	382.0	471.0	570.0
Shot Weight(PET)	G/0.91	347.62	428.61	518.7	347.62	428.61	518.7
Shot Weight(PET)	OZ	12.3	15.1	18.3	12.3	15.1	18.3

Clamping Force	KN	2080			2580
Opening Stroke	mm	450			450
Distance between tie-bars	mm	520x520			570x570
Movable platen size	mm	760x760			840x840
Max.mold height	mm	550			580
Min.mold height	mm	220			250
Ejector Stroke	mm	150			150
Ejector Force	KN	75			75
Numbet of ejector pins		4+1	4+1	4+1	4+1	4+1	4+1

Pump Motor Power	KW	23kw			27.8kw
Heating capacity	Mpa	16			16
Machine Size(LxWxH)	L	320			380
Machine Weight	KW	15			15
Outline size	m	5.71.451.7			5.91.51.8
Net weight	T	5.5	5.5	5.5	7.3	7.3	7.3

Ningbo Efficient Machine & Mould Co., Ltd.

Welcome to EFFICIENT Intelligent Equipment, your trusted partner in PET preform injection molding, based in Ningbo, China—the core of the plastics machinery industry! We stand among the world's top providers of end-to-end PET packaging solutions, specializing in innovative bottle preform systems that empower brands across beverages, cosmetics, pharmaceuticals, and FMCG sectors.

With decades of expertise as a leading Chinese manufacturer, we've gained the trust of clients in over 85 countries, delivering top-tier PET preform injection molding solutions.

Our expertise lies in PET preform injection molding. Our R&D team, led by industry veterans including former HUSKY (Canada) senior engineers, as well as experts from China's "Thousand Talents Plan" (Dr. Rong & Dr. Liu), drives innovation in every machine. Whether it's standard models or high-speed production systems, we craft equipment that combines precision, durability, and energy efficiency, outperforming global benchmarks.

We have a global reach with expanding direct EFFICIENT-branded exports worldwide, while ensuring local support for seamless service. No matter if you're a startup scaling up or an industry leader optimizing production, our solutions cater to your needs in diverse sectors.

Take 500/550ml, gram weight 12.8g-16g, and 48-cavity with preform weight 13.5g as an example, The outputcapacity of EFFlCIENT solution is about 20% higher than that of competing products of the same model in the marketThe output of preforms is about 700 kg more per day, and the output of preforms per month is about 21fons. Calculated at a profit of US$80/ton for PET preforms, each month you can have US$1,615 more proft wit EFFICIENT Solution.

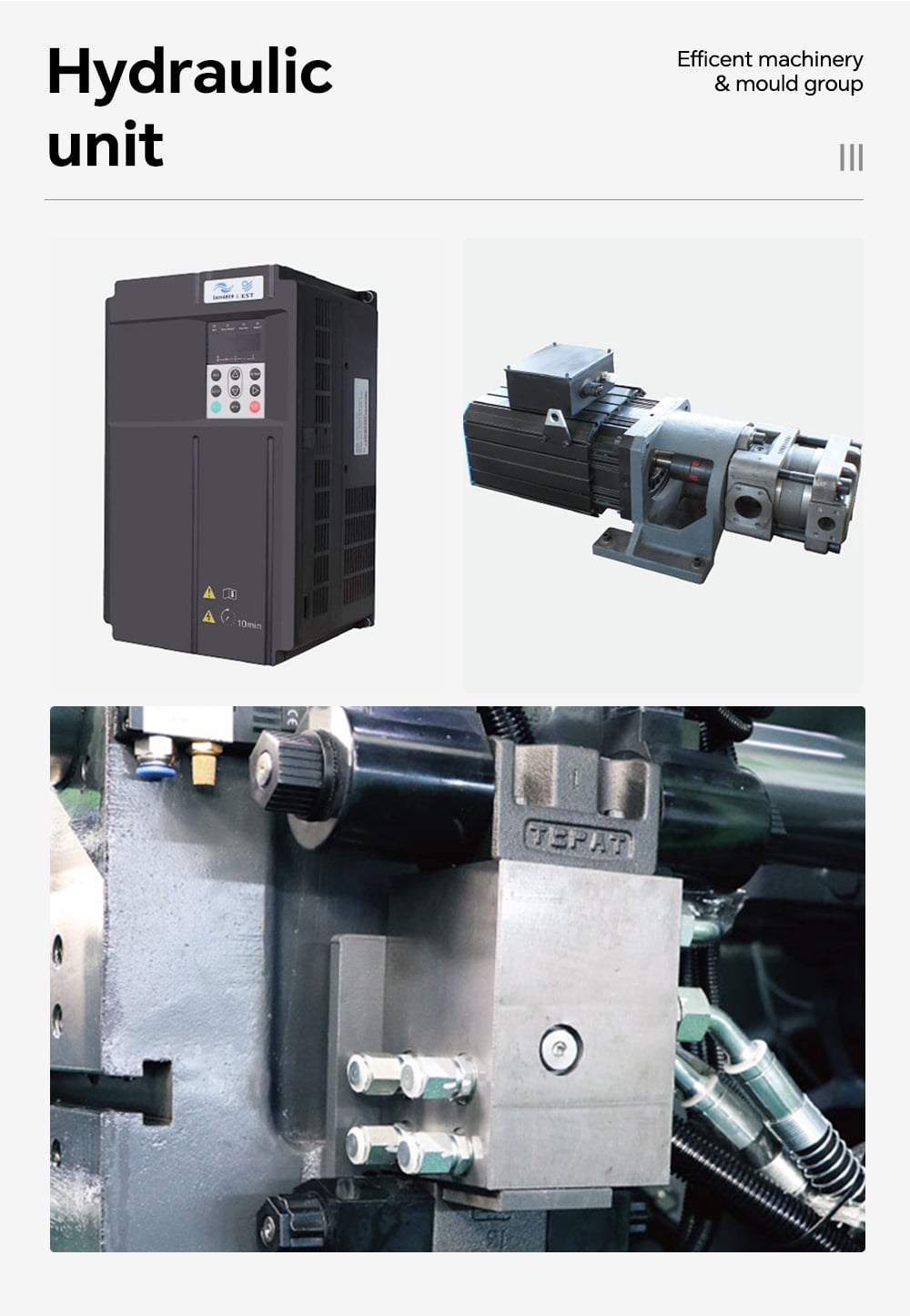

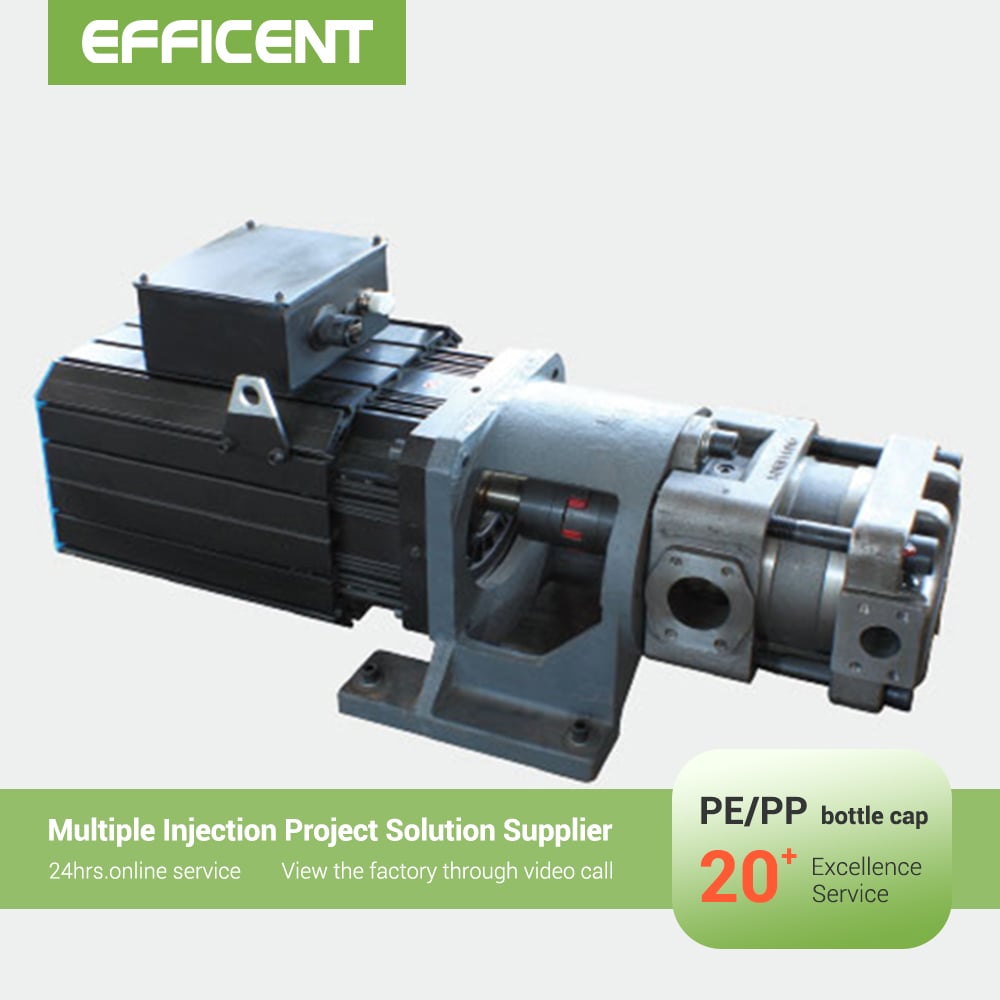

1. It adopts a servo system of a world-famous factory-branded high-voltage gear pump with a Japanese or German brand, with high response speed and control accuracy, saving about 30% to 80%.

2. All hydraulic components are made of products from world-renowned manufacturers to ensure the stability and durability of the machine operation.

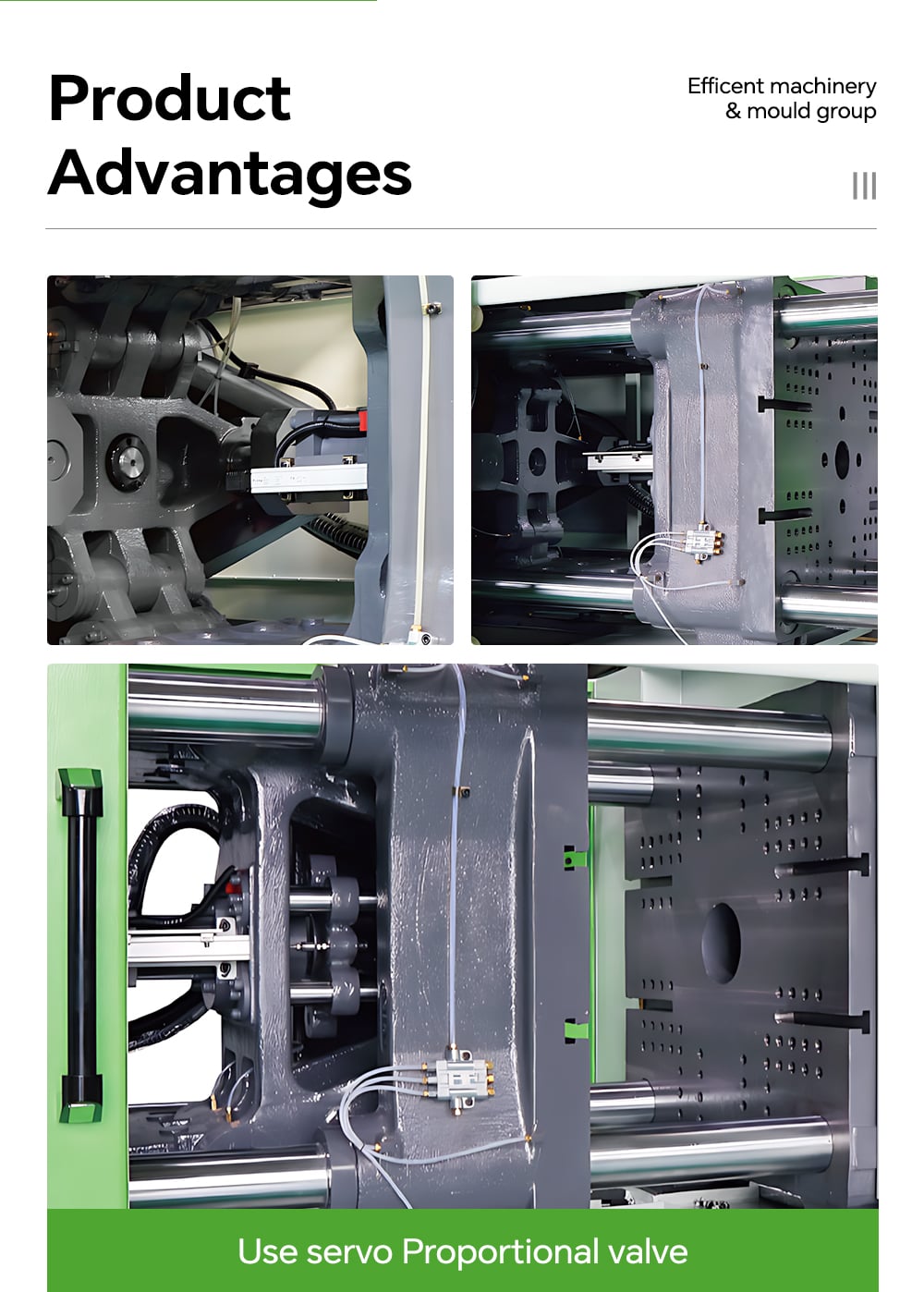

3. The proportional backpressure control is adopted to make the process adjustment range wider and the product is more stable.

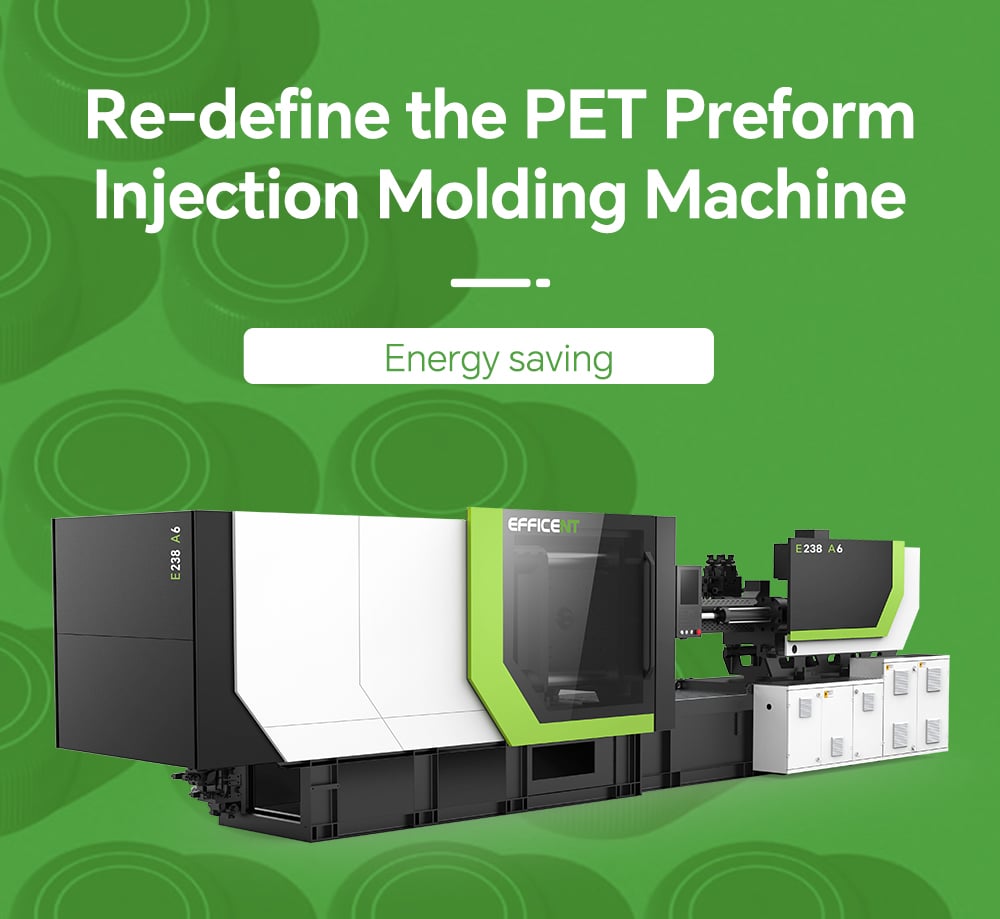

Re-define the PET Preform Injection Molding Machine

As the competition in the PET preform market becomes more and more intense, and the profit becomes less, the transformation and upgrading of the preform production process and cost control have become the top prionty to all PET relevant products manufacturers. The two core factors that restrict the production cost of preforms are the cycle time and energy consumption.Therefore, the requirements for the cycle time and energy consumption of the PET lMM getting higher and higher. Most of the injection molding machines used on the market are from general-purpose lMM, only by simply changing the screw & barrel unit, not specially desgned for PET preform mold and PET material. EFFlCiENT has been focusing on high-speed preform injection molding system for many years, and has successfully developed a series of special PET injection molding machines in an essential sense. These special high speed PET injection molding machines can help our clients solve this difficult problems from the root.

Comparison Table

Technical Specifications	High-Speed	Quick-Response	Unit
Series Positioning	High Output, Ultra-Fast Cycle Time	Flexible Production, Superior Energy Efficiency	-
Model Example	HPET2300/388S7	KPET1200/288S7	-
Clamping Force	3,880	2,880	kN
Screw Diameter	83	67	mm
Shot Volume	1,974.2	1,007.5	cm³
Opening Strok	590	520	mm
Tie Bar Space	730 × 730	630 × 600	mm
Motor Power	95.7 (39.4 + 56.3)	27.8	kW
Efficiency	Full-line Speed Boost 60%↑	Save energy 15%↑	-

Application Needs	Recommended Series	Core Reason
Large-scale, high-intensity production (e.g., 500ml water bottle preforms)	HPET Series	Designed specifically for high-speed cycles to maximize output per unit time and reduce unit cost.
Diversified, medium-scale production (e.g., cosmetics containers, pharmaceutical bottles)	KPET Series	Modular design enables fast mold changes, with excellent energy efficiency in non-continuous production.
Extra-large neck diameter and special preforms (e.g., wide-mouth jars, deep-cavity bottles)	KPET Custom Machine	Features a larger mold opening stroke and special mold-locking structure to accommodate complex mold requirements.

Faq

1. What products can this machine produce?

This solution is designed for high-performance packaging production and can be configured for PET preforms or selected PE/PP applications depending on the machine type and project requirement.

2. Which applications are suitable for?

Depending on the project configuration, this solution can support water and beverage preforms, edible oil packaging, daily chemical containers, wide-mouth packaging, and 3–5 gallon preform applications.

3. How do I know whether this machine is right for my production target?

The right model depends on your product type, material, cavity requirement, output target, and future expansion plan. Our team can recommend a suitable configuration based on your production goals.

4. How does this machine improve production efficiency?

According to our product presentation, the system is engineered to reduce cycle time in clamping, injection, and ejection while increasing overall output. Servo-driven injection and advanced heating technologies further improve machine speed and performance.

5. How energy-efficient is this system?

Energy saving is one of the key strengths of this solution. The machine design highlights optimized motor and hydraulic performance, while advanced injection and heating technologies help reduce energy consumption and lower operating costs.

6. Do you provide only the machine, or can you support a complete line?

In addition to the core molding system, we can also support complete solution planning with molds, robotics, auxiliary equipment, and smart factory data platforms for customers seeking more integrated production systems.

Need a machine recommendation for your specific product?

Send us your application, output target, and production goals, and our team will recommend a suitable solution for your project.
