PET Fruit Plates Living Room Home Fruit Plate Injection Molding Machine

  • Description
Free Analysis – Chat with Our Engineers Now

Free Analysis – Chat with Our Engineers Now

Inquiry
SPECIFICATIONS UNIT HPET2300/388S7 HPET3100/388S7 HPET4500/388S7 HPET5000/388S7 HPET3100/488S7
Screw Diameter mm 83 95 100 105 95
Injection Pressure Mpa 138 105 126 114 105
Screw L/d Ratio L/D 24 24 24 24 24
Injection rate(PET) g/s 580 972 812 896 972
Theoretical shot volume cm3 1974.2 2585.8 3768.0 4154.0 2585.8
Shot Weight(PS) g 2369 3103 4521.6 4984.8 3103
oz 83.6 109.5 159.5 175.8 109.5

Clamping Force KN 3880 3880 3880 3880 4880
Opening Stroke mm 590 590 590 590 700
Space Between Bars mm 730*730 730*730 730*730 730*730 830*830
Movable Platen Size mm 1060*1060 1060*1060 1060*1060 1060*1060 1180*1180
Max.mold height mm 700 700 700 700 780
Min.mold height mm 300 300 300 300 350
Ejector Stroke mm 220 220 220 220 220
Ejector Force KN 208 208 208 208 241
Number of ejector pins 12+1 12+1 12+1 12+1 12+1

Motor power KW 55+56.3 55+72 55+81 55+81 72+72
Hyaraulic system pressure Mpa 16 16 16 16 16
Oit tank capacity L 550 550 650 650 600
Heatier power KW 35.7 45.3 55 61 45.3
Machine dimension m 7.8*1.9*2.05 8.0*1.9*2.05 8.7*2.0*2.05 8.7*2.0*2.05 9.1*2.1*2.2
Machine weight T 15.5 15.8 16 16.5 19.5











Ningbo Efficient Machine & Mould Co., Ltd.

Welcome to EFFICIENT Intelligent Equipment, your trusted partner in PET preform injection molding, based in Ningbo, China—the core of the plastics machinery industry! We stand among the world's top providers of end-to-end PET packaging solutions, specializing in innovative bottle preform systems that empower brands across beverages, cosmetics, pharmaceuticals, and FMCG sectors.​

With decades of expertise as a leading Chinese manufacturer, we've gained the trust of clients in over 85 countries, delivering top-tier PET preform injection molding solutions.

Our expertise lies in PET preform injection molding. Our R&D team, led by industry veterans including former HUSKY (Canada) senior engineers, as well as experts from China's "Thousand Talents Plan" (Dr. Rong & Dr. Liu), drives innovation in every machine.  Whether it's standard models or high-speed production systems, we craft equipment that combines precision, durability, and energy efficiency, outperforming global benchmarks.​

We have a global reach with expanding direct EFFICIENT-branded exports worldwide, while ensuring local support for seamless service. No matter if you're a startup scaling up or an industry leader optimizing production, our solutions cater to your needs in diverse sectors.​










pet fruit plates living room home fruit plate injection molding machine-1

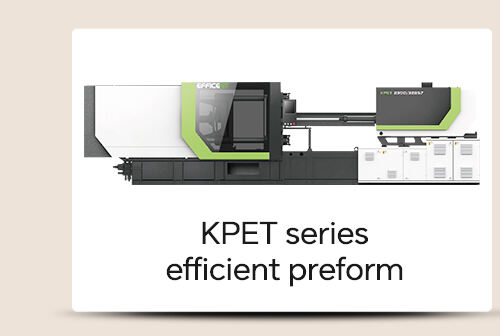

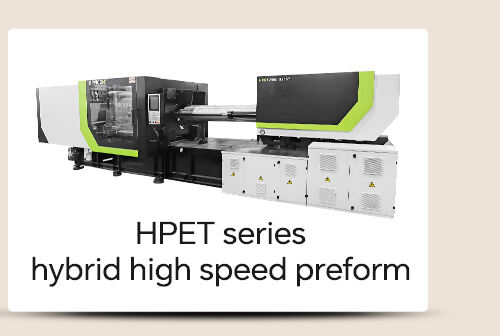

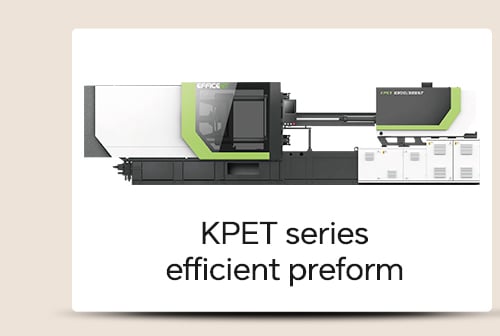

pet fruit plates living room home fruit plate injection molding machine-2 pet fruit plates living room home fruit plate injection molding machine-3
pet fruit plates living room home fruit plate injection molding machine-4 pet fruit plates living room home fruit plate injection molding machine-5
pet fruit plates living room home fruit plate injection molding machine-6 pet fruit plates living room home fruit plate injection molding machine-7

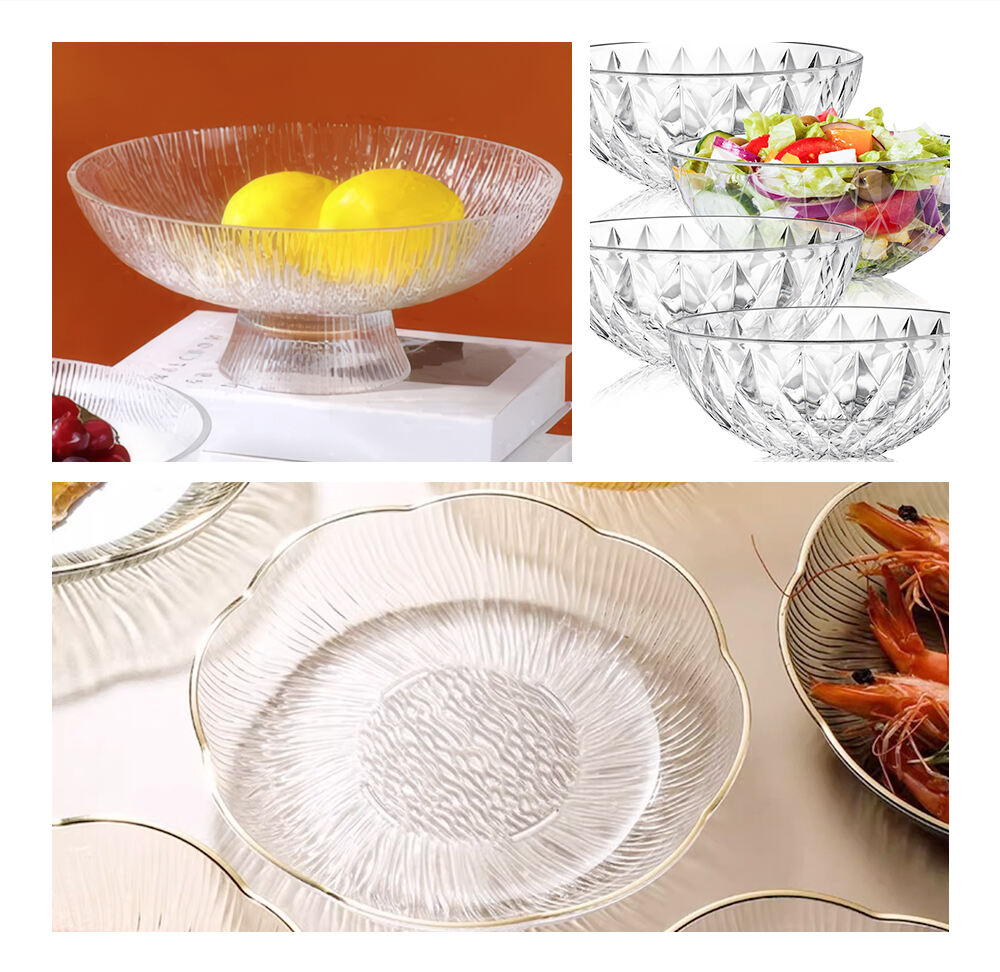

Upgrade your production with the PET Fruit Plates Injection Molding Machine, engineered to create elegant and durable living room fruit plates with exceptional clarity and consistent quality. This specialized machine delivers precise molding, smooth surface finishes, and optimized cycle times—ideal for household and hospitality use. Reliable, efficient, and designed for simplicity, it helps you produce attractive, food-safe plates that combine style with everyday practicality.


pet fruit plates living room home fruit plate injection molding machine-8 pet fruit plates living room home fruit plate injection molding machine-9

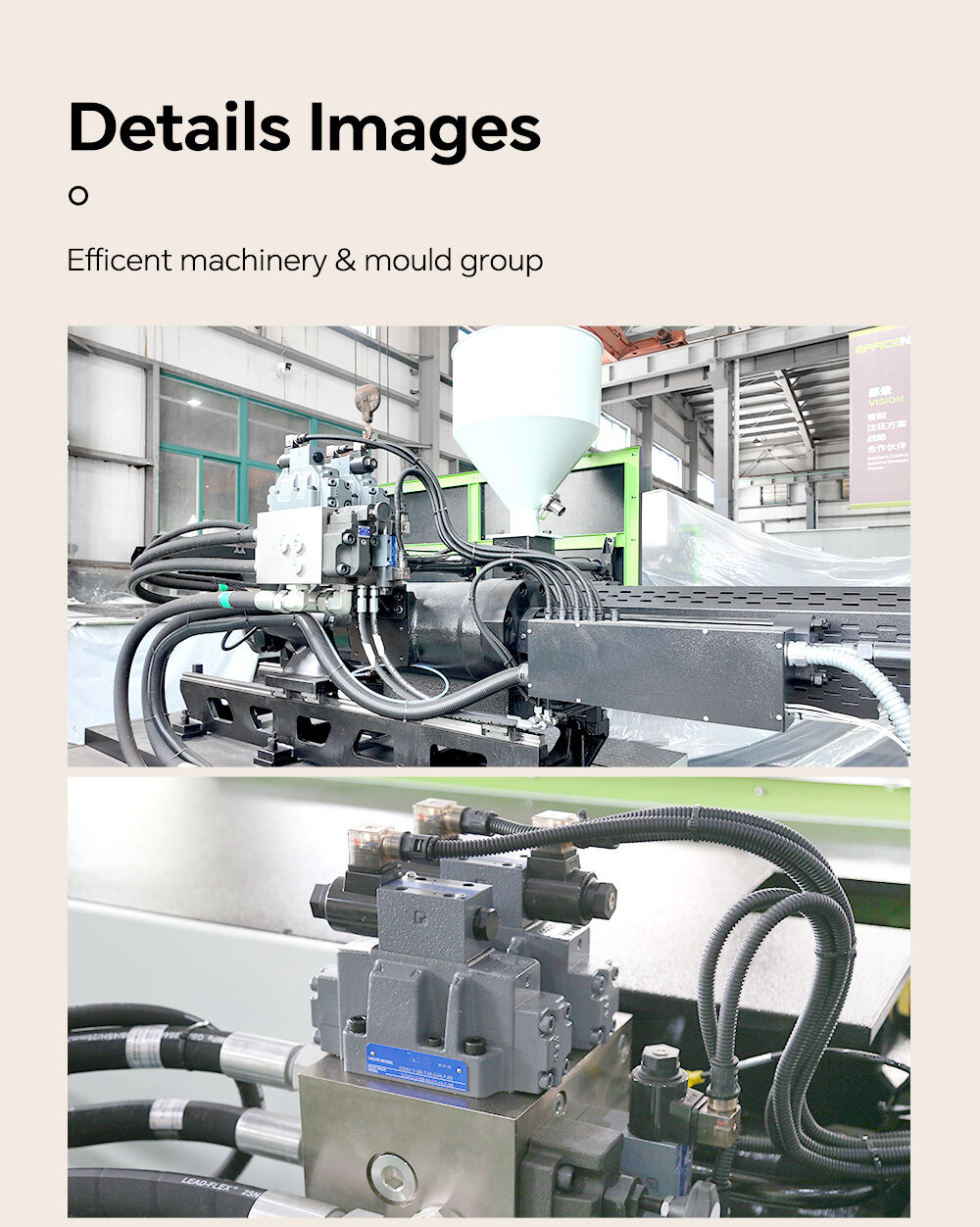

Leading back-pressure vale design

Use servo proportional valve for both mould open and eject



pet fruit plates living room home fruit plate injection molding machine-10

Professional hydraulic circuit design

E-charging system in use, can shorten the cycle time by 15% while save 30% energy

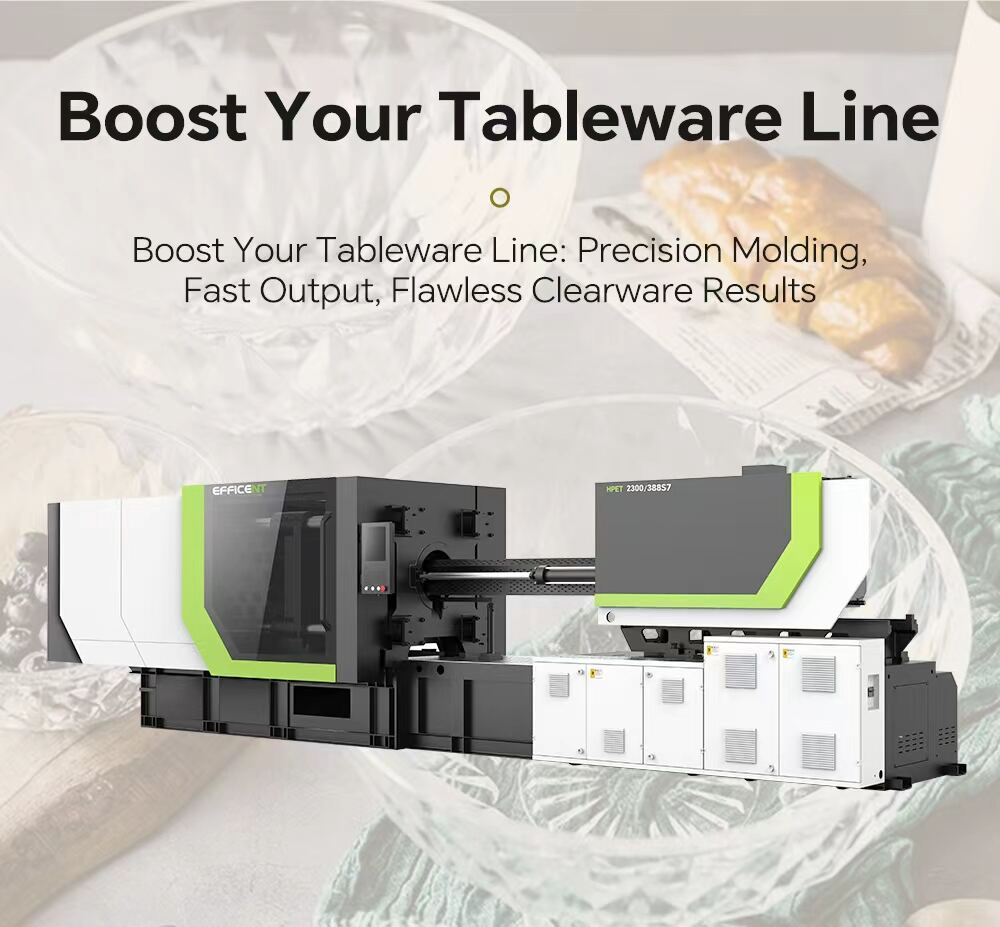

Premium PET Fruit Plate Injection Molding Machine

Elevate your production with our specialized PET Fruit Plate Injection Molding Machine, designed to create elegant and durable living room home fruit plates with efficiency and precision.

Our machine supports rapid cycle times and consistent output, making it ideal for meeting both household and commercial demands. The user-friendly interface allows easy adjustment for different plate sizes and designs, while energy-efficient operation helps reduce overall production costs.

With reliable performance and low maintenance requirements, this injection molding solution enables you to produce high-quality PET fruit plates that are not only visually appealing but also sturdy and practical for everyday use. Perfect for manufacturers looking to combine style, functionality, and productivity.


Re-define the PET Preform Injection Molding Machine

As the competition in the PET preform market becomes more and more intense, and the profit becomes less, the transformation and upgrading of the preform production process and cost control have become the top prionty to all PET relevant products manufacturers. The two core factors that restrict the production cost of preforms are the cycle time and energy consumption.Therefore, the requirements for the cycle time and energy consumption of the PET lMM getting higher and higher. Most of the injection molding machines used on the market are from general-purpose lMM, only by simply changing the screw & barrel unit, not specially desgned for PET preform mold and PET material. EFFlCIENT has been focusing on high-speed preform injection molding system for many years, and has successfully developed a series of special PET injection molding machines in an essential sense. These special high speed PET injection molding machines can help our clients solve this difficult problems from the root.
