Description

Models

UNIT

200/200

300/200

300/300

400/300

400/400

500/400

500/500

600/500

800/800

1000/800

Dry windmil power	KW	2.2	2.2	3.4	3.4	4	7.5	7.5	7.5	9.0	9.0
Drying electrothermal power	KW	9	9	15	18	18	18	21	21	24	24
Full insulated barrei capacity	L	300	450	450	600	600	750	750	900	1200	1500
Regenerated electric power	KW	4	4	6	6	7.2	10	10	10	12	12
Regenerative windmill power	KW	0.4	0.4	0.75	0.75	0.75	1.5	1.5	1.5	2.2	2.2
Dehumidification air volume	m³/hr	200	200	300	300	400	500	500	500	800	800
Feed windmill power	KW	1.5	1.5	2.2	2.2	2.2	3	3	3	4	4
Vacuum hopper	L	12	12	12	12	12	12	12	12	12	12
Magic eye hopper	L	12	12	12	12	12	12	12	12	12	12
lt sucks the size of the tube	Inch	1.5	2	2	2	2	2	2	2	2	2

Models

200/200

300/200

300/300

400/300

400/400

500/400

500/500

600/500

800/800

1000/800

H	mm	2380	2780	3030	3530	3530	3530	3230	3230	3230	3430
H1	mm	2200	2350	2650	2650	2650	2650	2650	2650	2650	2850
W	mm	1400	1400	1400	1400	1600	1600	1700	1700	1700	1700
D	mm	1000	1000	1200	1200	1300	1300	1300	1300	1300	1300
Weight	KG	560	590	600	620	640	650	690	690	820	880

Ningbo Efficient Machine & Mould Co., Ltd.

Welcome to EFFICIENT Intelligent Equipment, your trusted partner in PET preform injection molding, based in Ningbo, China—the core of the plastics machinery industry! We stand among the world's top providers of end-to-end PET packaging solutions, specializing in innovative bottle preform systems that empower brands across beverages, cosmetics, pharmaceuticals, and FMCG sectors.

With decades of expertise as a leading Chinese manufacturer, we've gained the trust of clients in over 85 countries, delivering top-tier PET preform injection molding solutions.

Our expertise lies in PET preform injection molding. Our R&D team, led by industry veterans including former HUSKY (Canada) senior engineers, as well as experts from China's "Thousand Talents Plan" (Dr. Rong & Dr. Liu), drives innovation in every machine. Whether it's standard models or high-speed production systems, we craft equipment that combines precision, durability, and energy efficiency, outperforming global benchmarks.

We have a global reach with expanding direct EFFICIENT-branded exports worldwide, while ensuring local support for seamless service. No matter if you're a startup scaling up or an industry leader optimizing production, our solutions cater to your needs in diverse sectors.

WHY CHOOSE US

1.If there is a problem and you can't find the manufacturer to repair it?
We have a professional design and R&D team, a number of invention patents, more than 20 years of production experience, which can be customized according to customer requirements and drawings.

2.The product has a short service life
Solution: Anjieneng energy-saving dryer is made of stainless steel for long life, durable brand electrical components, fast heat dissipation, large area and long life of special customized heating pipes.

3.Product quality and performance
High standards of product quality, reliability, durability and other aspects, as well as the product has sufficient market competitiveness.

4.Price and profit
Give the distributor a purchase price for the product to ensure that they can make enough profits.

5.Is your order delayed? Contact the shipper and there is no answer?
We have a long-term and stable logistics team, and the company has a professional logistics and transportation department, which responds in a timely manner and quickly finds the transportation path of goods.

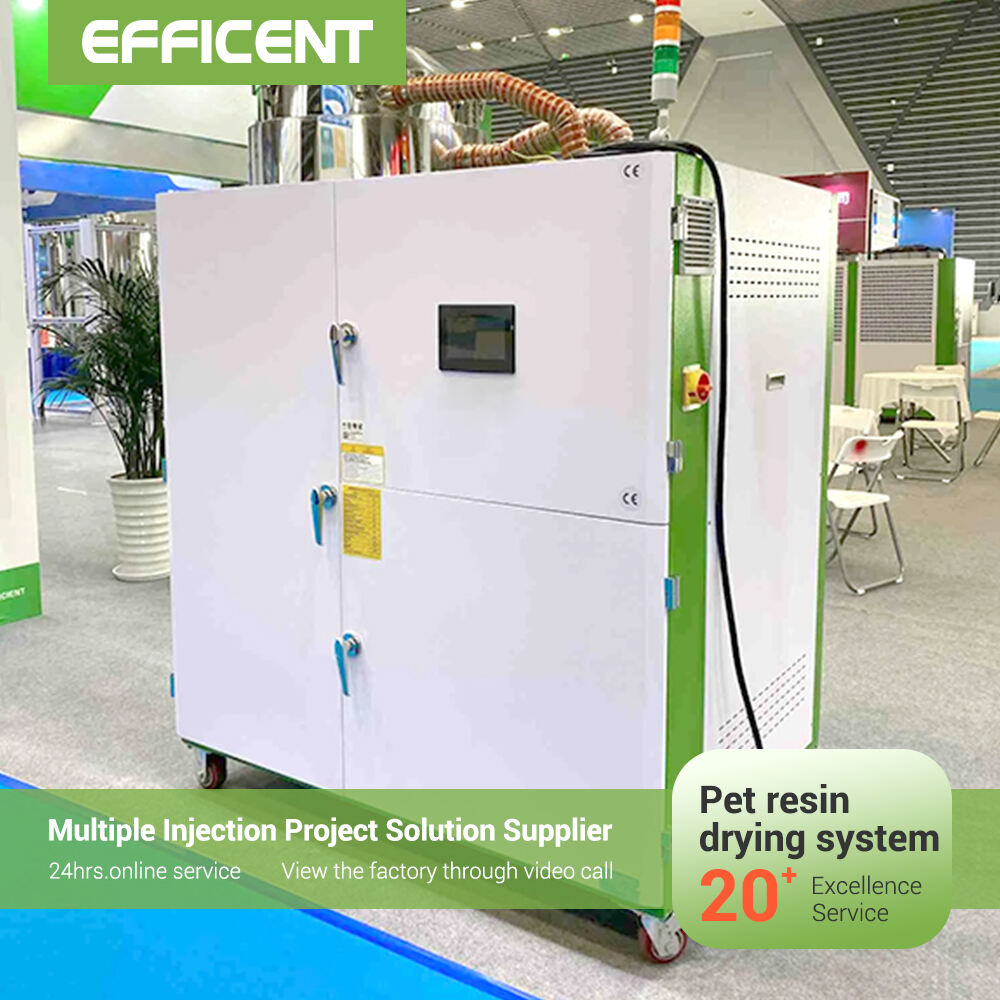

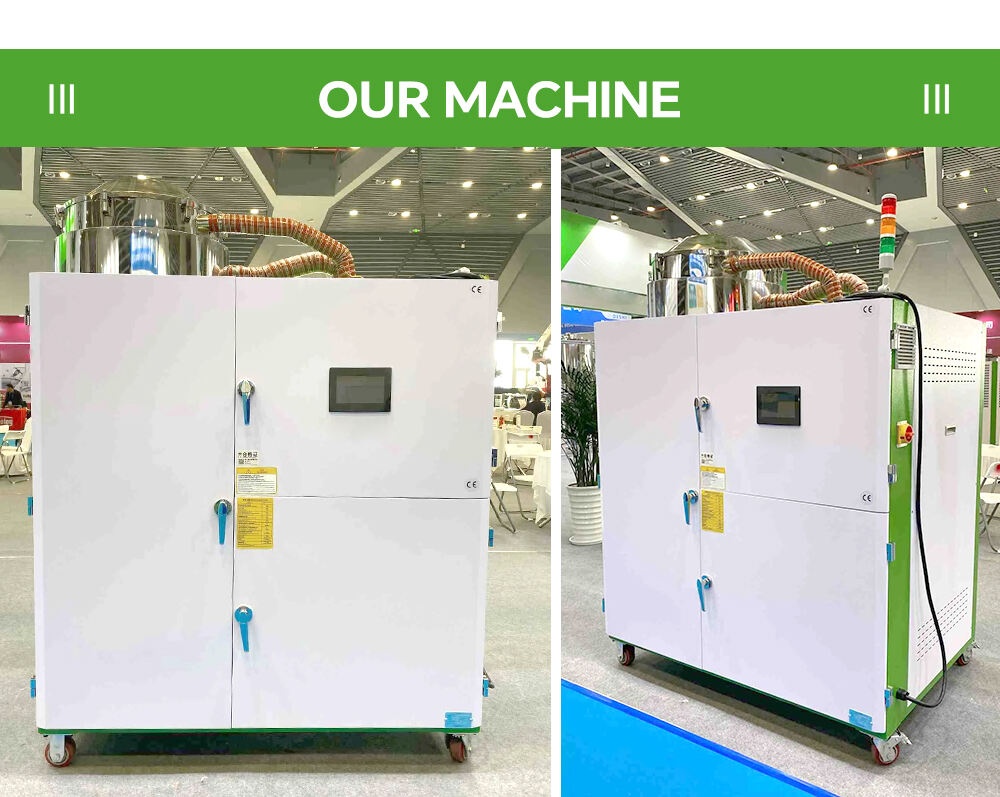

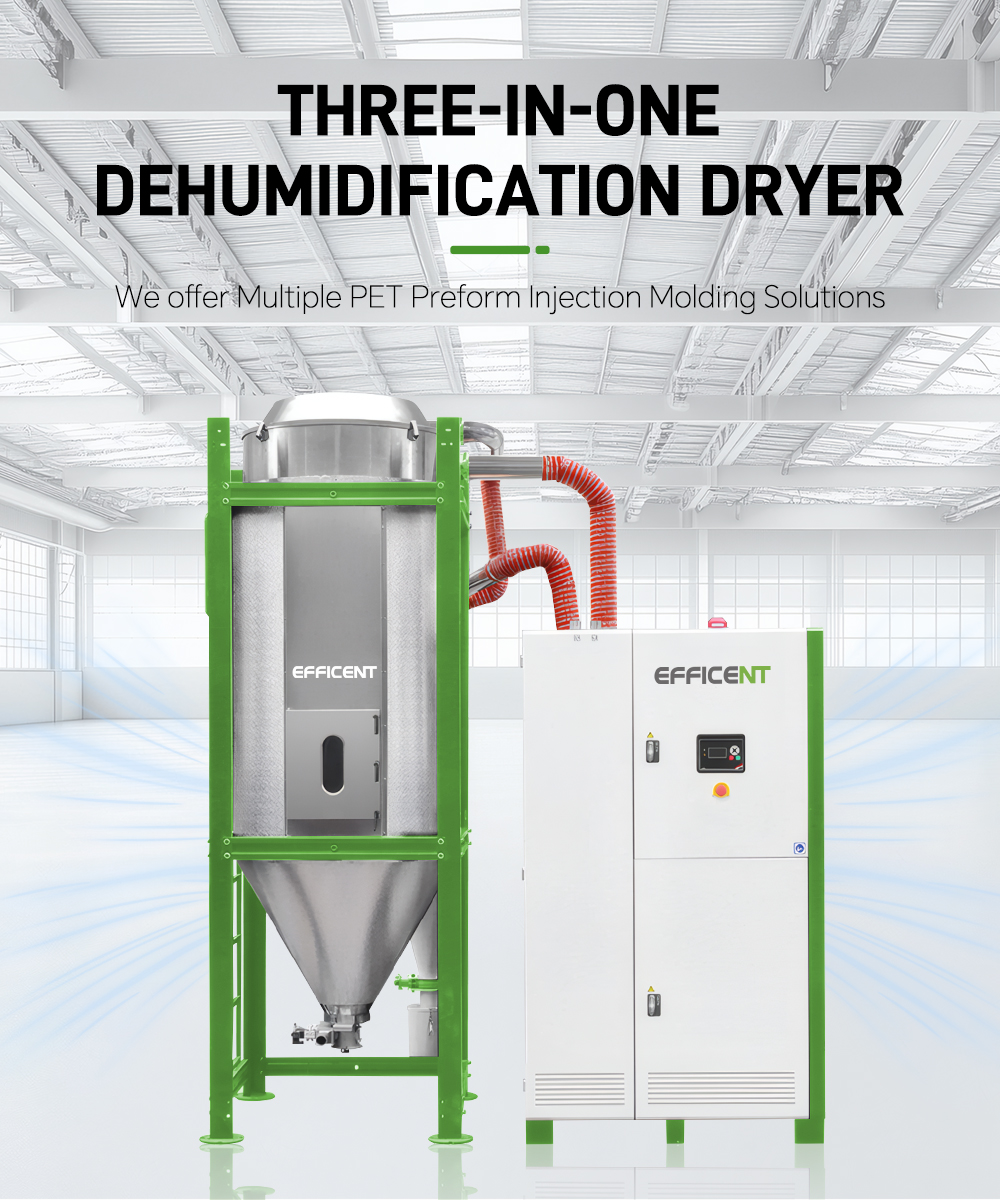

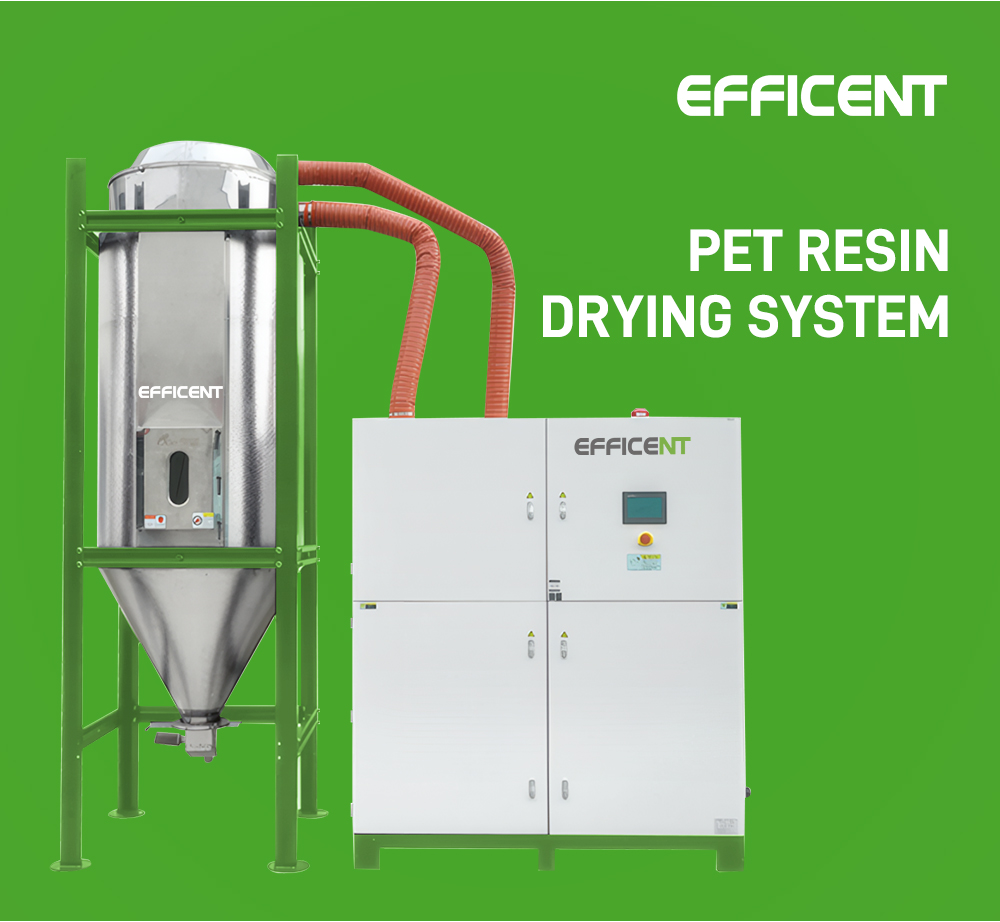

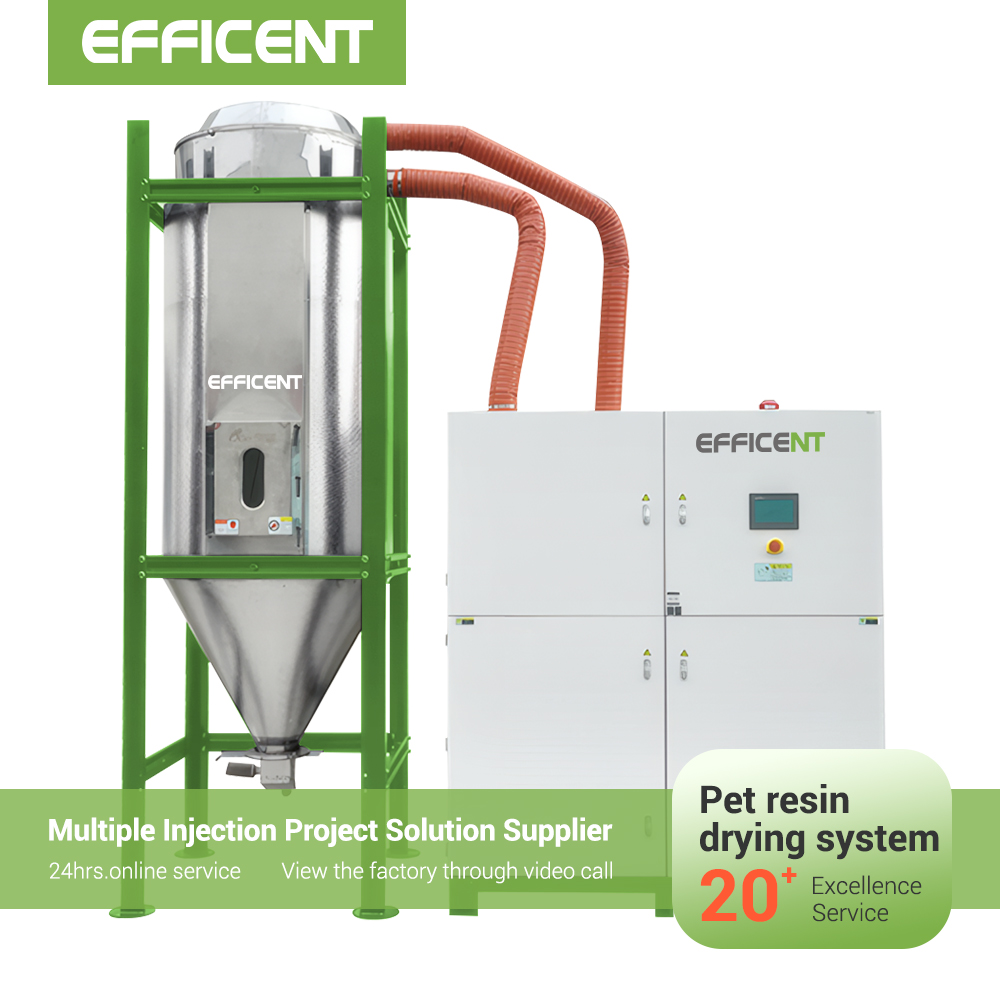

3 IN 1 PET DEHUMIDIFICATION AND DRYING FEEDING SYSTEM:

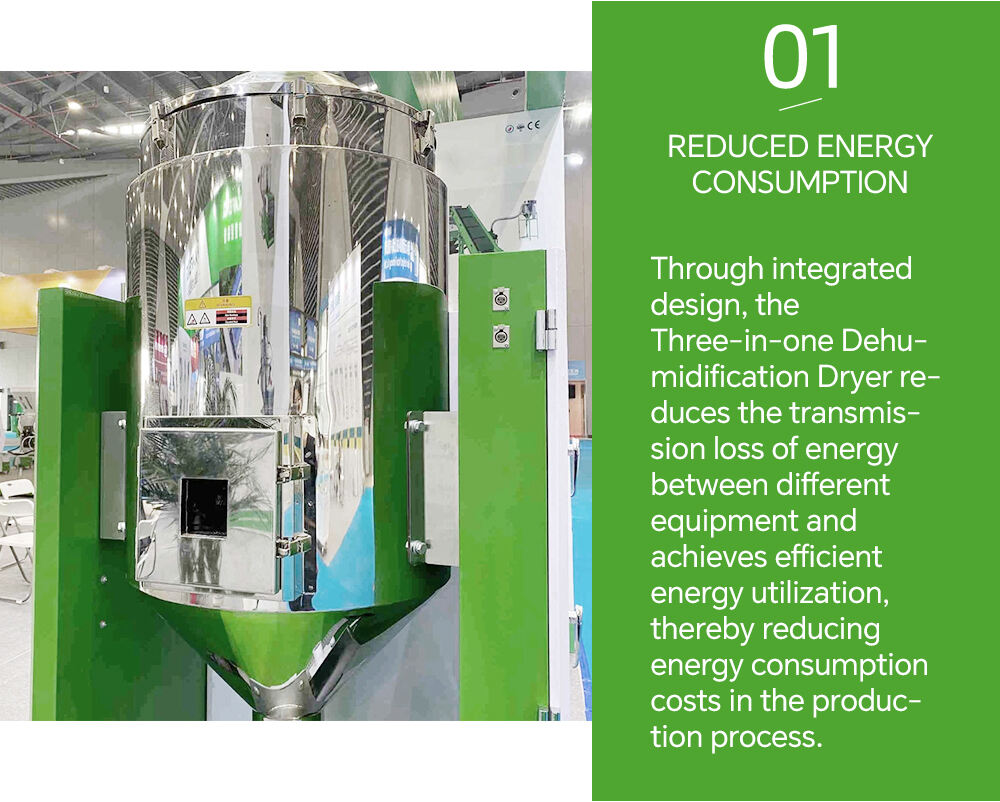

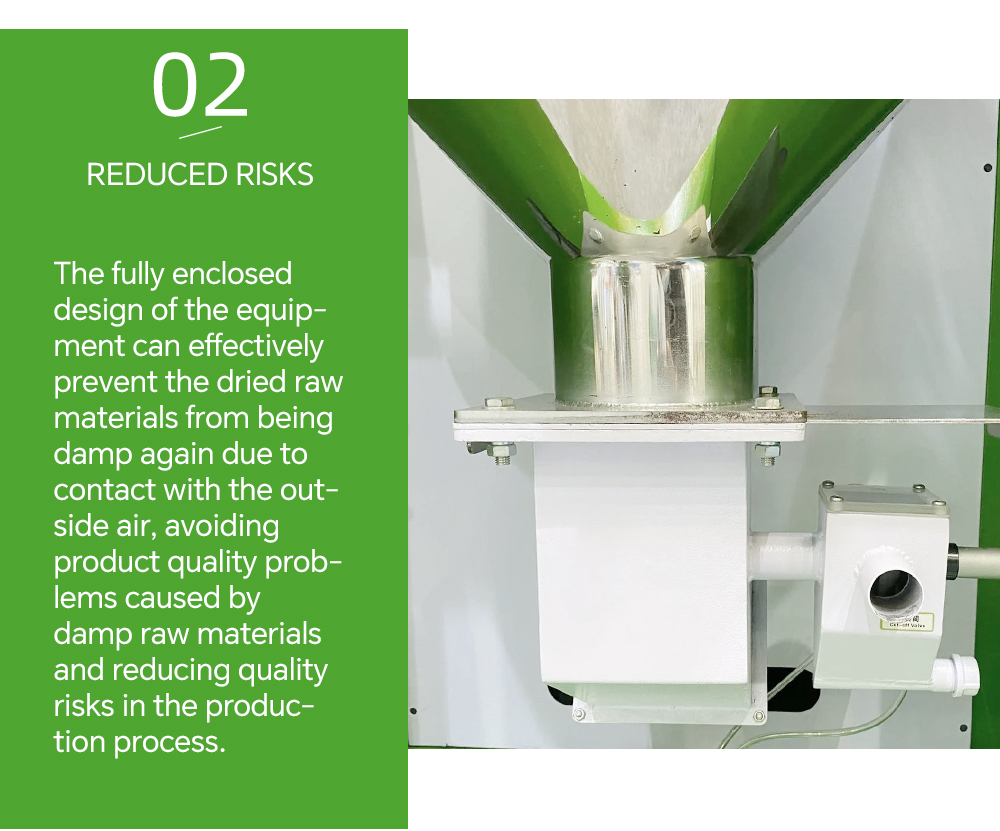

The integrated design ensures that the material is dried in a completely closed system, avoiding the re-dampening of the dried material due to contact with the outside air to achieve a good drying effect.

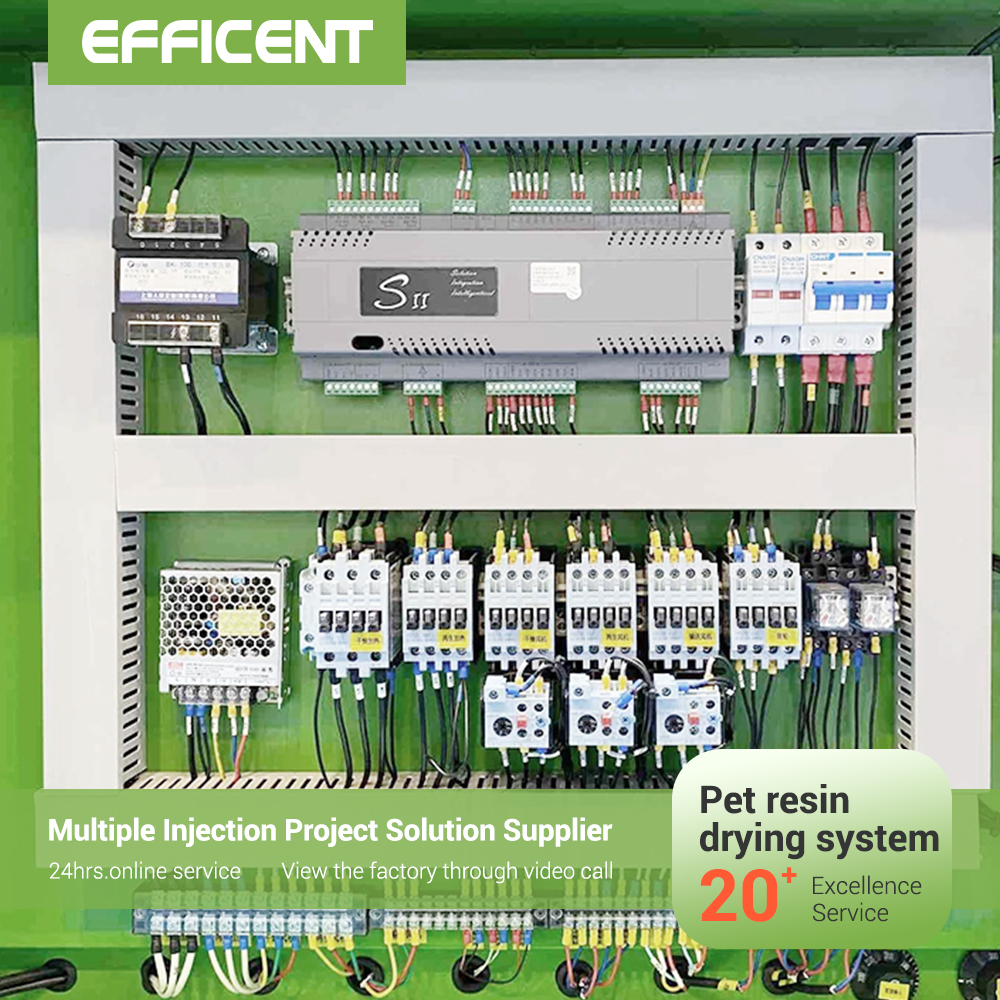

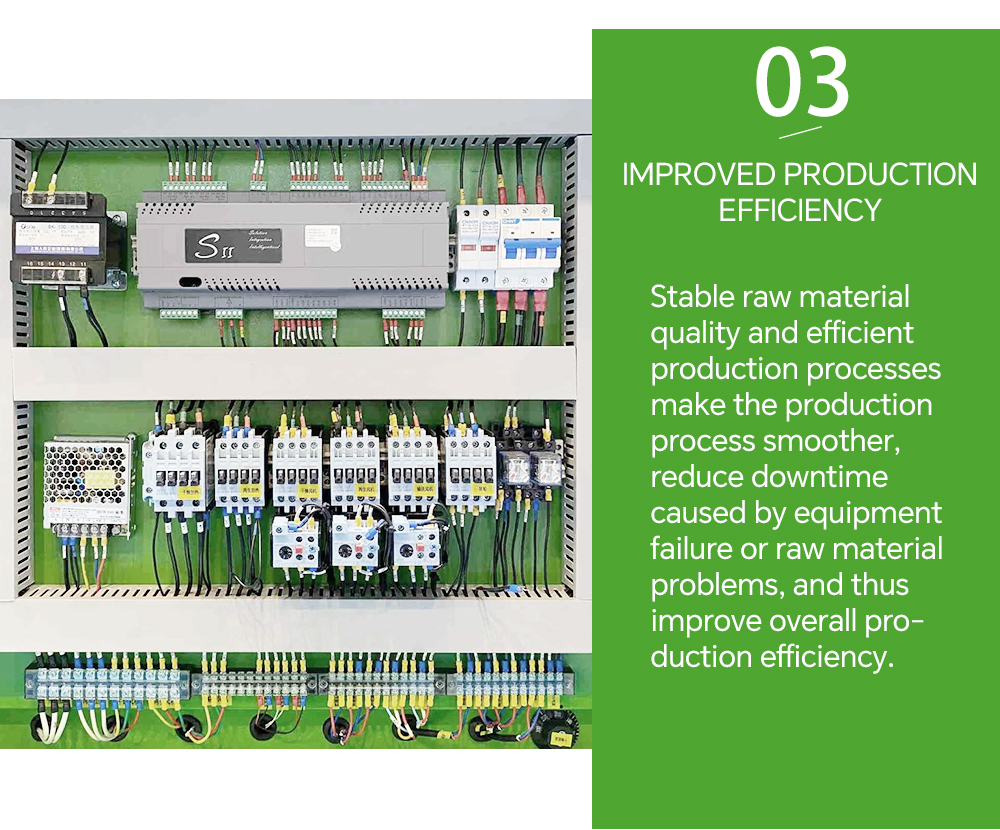

Microcomputer P.I.D control system, with high temperature protection, motor overload, motor reverse protection, stop delay cooling and other protection functions.

Lower dew point, below -40℃ dry air dew point to ensure that the resin is fully dry.

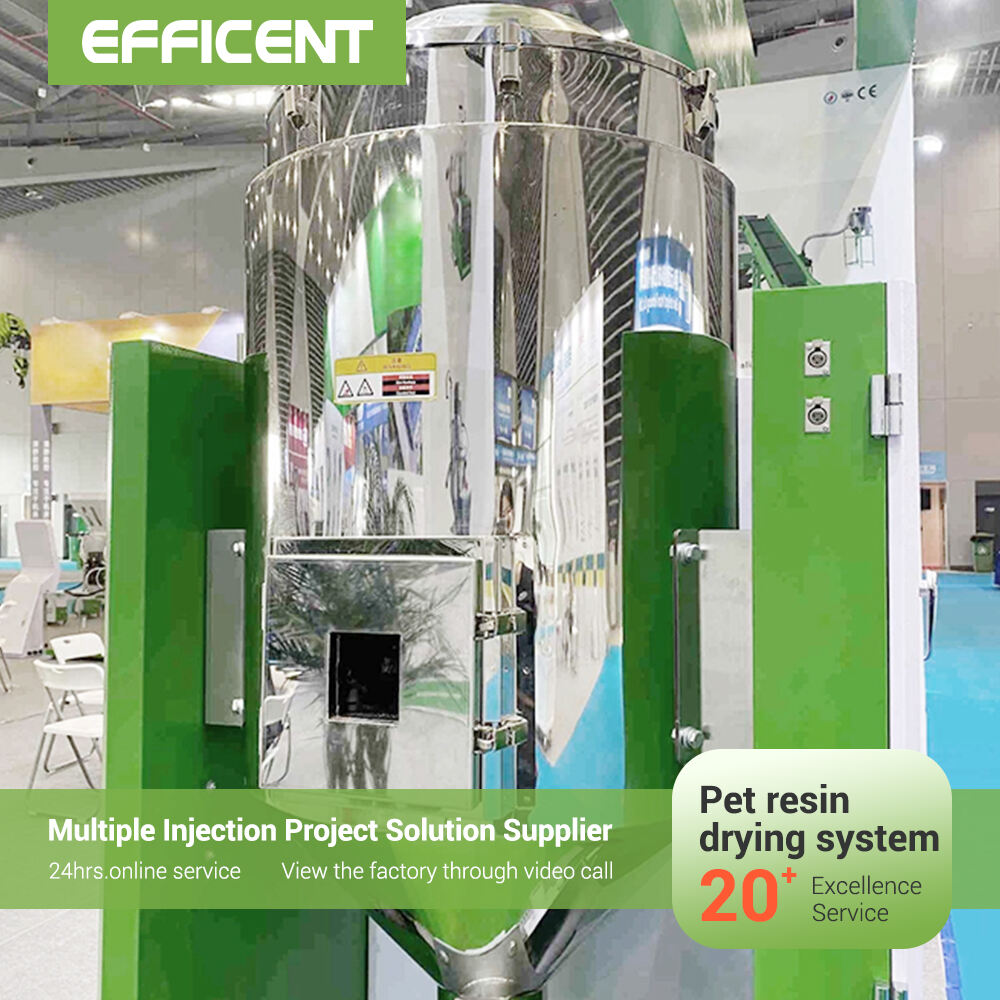

Down blow drying hopper is designed to prevent the loss of heat energy and ensure the temperature uniformity.

Full insulation dry hopper, to prevent the loss of heat, to ensure the temperature is evenly.

Advanced technology, safe and reliable, superior performance, save space.

Re-define the PET Preform Injection Molding Machine

As the competition in the PET preform market becomes more and more intense, and the profit becomes less, the transformation and upgrading of the preform production process and cost control have become the top prionty to all PET relevant products manufacturers. The two core factors that restrict the production cost of preforms are the cycle time and energy consumption.Therefore, the requirements for the cycle time and energy consumption of the PET lMM getting higher and higher. Most of the injection molding machines used on the market are from general-purpose lMM, only by simply changing the screw & barrel unit, not specially desgned for PET preform mold and PET material. EFFlCIENT has been focusing on high-speed preform injection molding system for many years, and has successfully developed a series of special PET injection molding machines in an essential sense. These special high speed PET injection molding machines can help our clients solve this difficult problems from the root.

Comparison Table

Technical Specifications	High-Speed	Quick-Response	Unit
Series Positioning	High Output, Ultra-Fast Cycle Time	Flexible Production, Superior Energy Efficiency	-
Model Example	HPET2300/388S7	KPET1200/288S7	-
Clamping Force	3,880	2,880	kN
Screw Diameter	83	67	mm
Shot Volume	1,974.2	1,007.5	cm³
Opening Strok	590	520	mm
Tie Bar Space	730 × 730	630 × 600	mm
Motor Power	95.7 (39.4 + 56.3)	27.8	kW
Efficiency	Full-line Speed Boost 60%↑	Save energy 15%↑	-

Application Needs	Recommended Series	Core Reason
Large-scale, high-intensity production (e.g., 500ml water bottle preforms)	HPET Series	Designed specifically for high-speed cycles to maximize output per unit time and reduce unit cost.
Diversified, medium-scale production (e.g., cosmetics containers, pharmaceutical bottles)	KPET Series	Modular design enables fast mold changes, with excellent energy efficiency in non-continuous production.

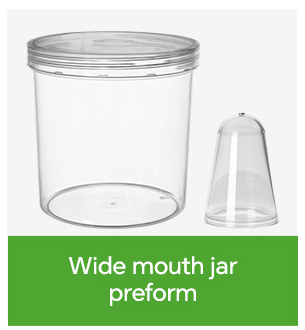

Extra-large neck diameter and special preforms (e.g., wide-mouth jars, deep-cavity bottles)	KPET Custom Machine	Features a larger mold opening stroke and special mold-locking structure to accommodate complex mold requirements.

Faq

1. What products can this machine produce?

This solution is designed for high-performance packaging production and can be configured for PET preforms or selected PE/PP applications depending on the machine type and project requirement.

2. Which applications are suitable for?

Depending on the project configuration, this solution can support water and beverage preforms, edible oil packaging, daily chemical containers, wide-mouth packaging, and 3–5 gallon preform applications.

3. How do I know whether this machine is right for my production target?

The right model depends on your product type, material, cavity requirement, output target, and future expansion plan. Our team can recommend a suitable configuration based on your production goals.

4. How does this machine improve production efficiency?

According to our product presentation, the system is engineered to reduce cycle time in clamping, injection, and ejection while increasing overall output. Servo-driven injection and advanced heating technologies further improve machine speed and performance.

5. How energy-efficient is this system?

Energy saving is one of the key strengths of this solution. The machine design highlights optimized motor and hydraulic performance, while advanced injection and heating technologies help reduce energy consumption and lower operating costs.

6. Do you provide only the machine, or can you support a complete line?

In addition to the core molding system, we can also support complete solution planning with molds, robotics, auxiliary equipment, and smart factory data platforms for customers seeking more integrated production systems.

Need a machine recommendation for your specific product?

Send us your application, output target, and production goals, and our team will recommend a suitable solution for your project.
