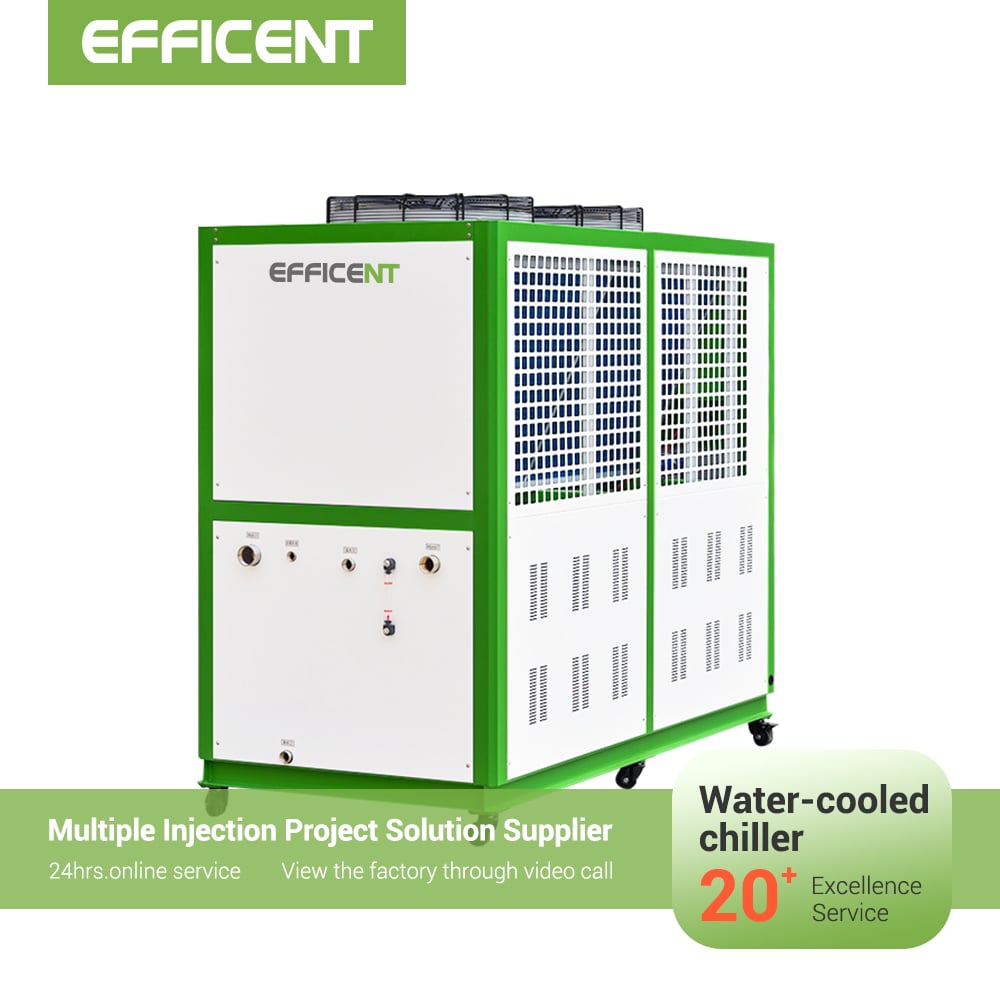

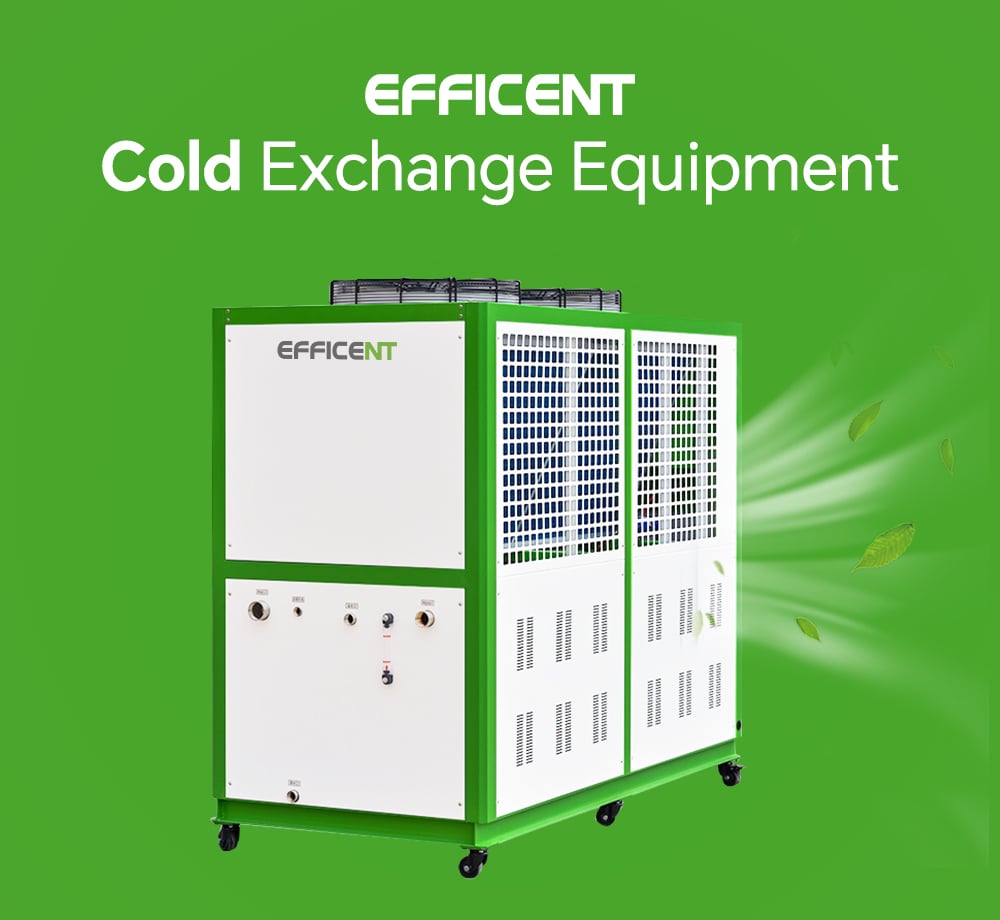

Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder
Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder

Water Cooled Chiller Water Cooling Chiller air Type for Injection Molding Machine Blowing Extruder

Get a Quote Inquiry
  • Description
  • Comparison Table
  • Faq
Free Analysis – Chat with Our Engineers Now

Free Analysis – Chat with Our Engineers Now

86-512-58990369
[email protected]
Inquiry
         Models UNIT 8 10 12 15 16 20 25 30 40 50
Refrigerating capacity KW 19.8 25.2 29.6 37.5 39.6 50.4 59.2 75.6 100.8 118.4
10 kcal/h 17 21.7 25.5 32.3 34.1 43.3 50.9 65 86.7 102
         Models

Machine input power KW 7.61 9.75 11.2 15.3 15.7 19.9 22.4 29.6 39 44.3
Machine rated current mm 13.5 17.2 19.4 24 27.4 35.1 39.8 52.3 69.5 78.4
Compressor row Power KW 6.1 8.1 9.15 12.2 12.6 16.2 18.3 24.8 32.4 36.6
Water pump Power KW 0.75 0.75 0.75 1.5 1.5 1.5 1.5 1.5 2.2 2.2

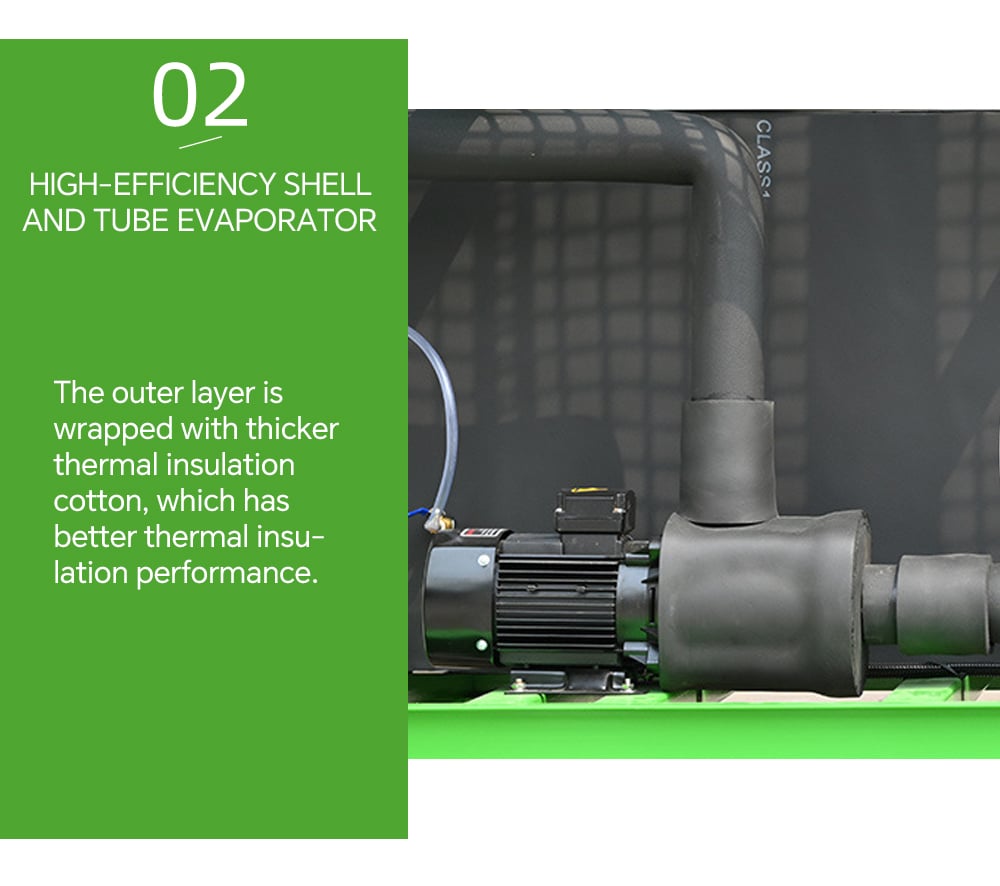

Evaporator row type Water flow ZM 3.4 4.3 5.1 6.4 6.8 8.6 10.1 13 17.3 20.3
Evaporator row type Water interface size mm DN40 DN40 DN40 DN50 DN50 DN50 DN50 DN65 DN65 DN65
Water tank nominal volume L 160 160 160 250 250 250 250 300 300 300
Overall dimensions Long mm 1400 1400 1650 1650 1650 2000 2000 2400 2500 2500
Overall dimensions Wide mm 850 850 850 850 850 1000 1000 1000 1500 1500
Overall dimensions High mm 1560 1560 1560 1560 1560 1650 1650 1650 1800 1800
Weight KG 330 360 435 495 530 585 655 720 850 960










Ningbo Efficient Machine & Mould Co., Ltd.

Welcome to EFFICIENT Intelligent Equipment, your trusted partner in PET preform injection molding, based in Ningbo, China—the core of the plastics machinery industry! We stand among the world's top providers of end-to-end PET packaging solutions, specializing in innovative bottle preform systems that empower brands across beverages, cosmetics, pharmaceuticals, and FMCG sectors.​

With decades of expertise as a leading Chinese manufacturer, we've gained the trust of clients in over 85 countries, delivering top-tier PET preform injection molding solutions.

Our expertise lies in PET preform injection molding. Our R&D team, led by industry veterans including former HUSKY (Canada) senior engineers, as well as experts from China's "Thousand Talents Plan" (Dr. Rong & Dr. Liu), drives innovation in every machine.  Whether it's standard models or high-speed production systems, we craft equipment that combines precision, durability, and energy efficiency, outperforming global benchmarks.​

We have a global reach with expanding direct EFFICIENT-branded exports worldwide, while ensuring local support for seamless service. No matter if you're a startup scaling up or an industry leader optimizing production, our solutions cater to your needs in diverse sectors.​








water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-1
water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-2 water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-3 water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-4
water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-5 water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-6 water cooled chiller water cooling chiller air type for injection molding machine blowing extruder-7

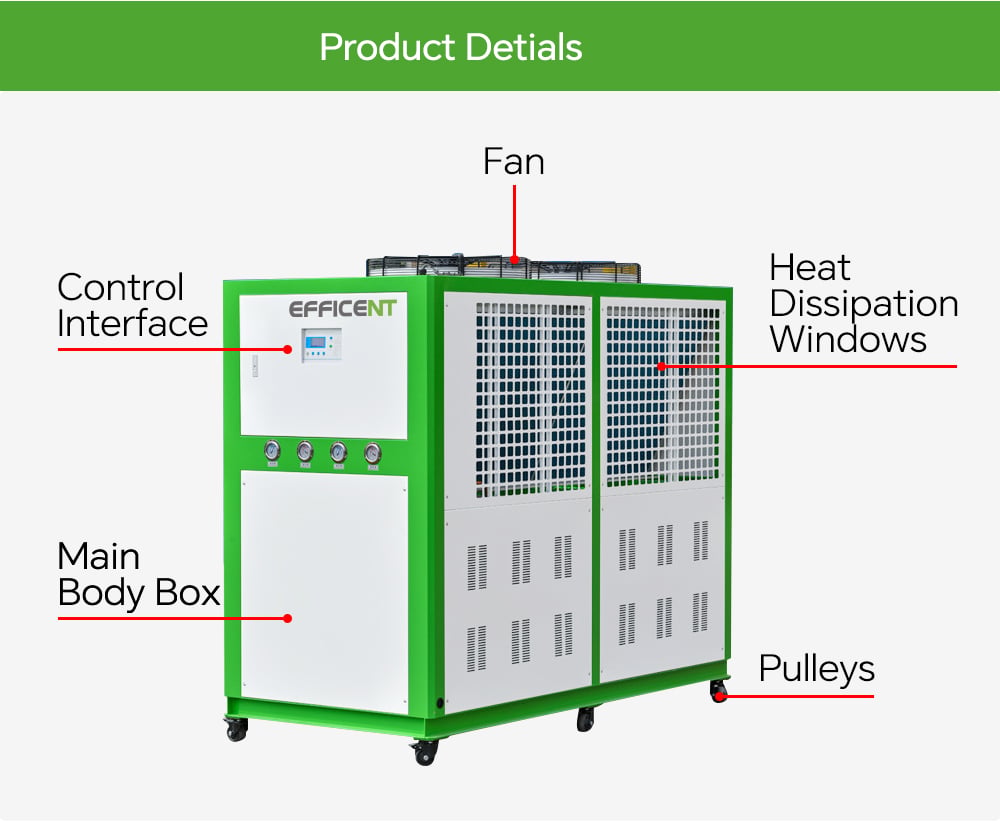

UNIT FEATURES:

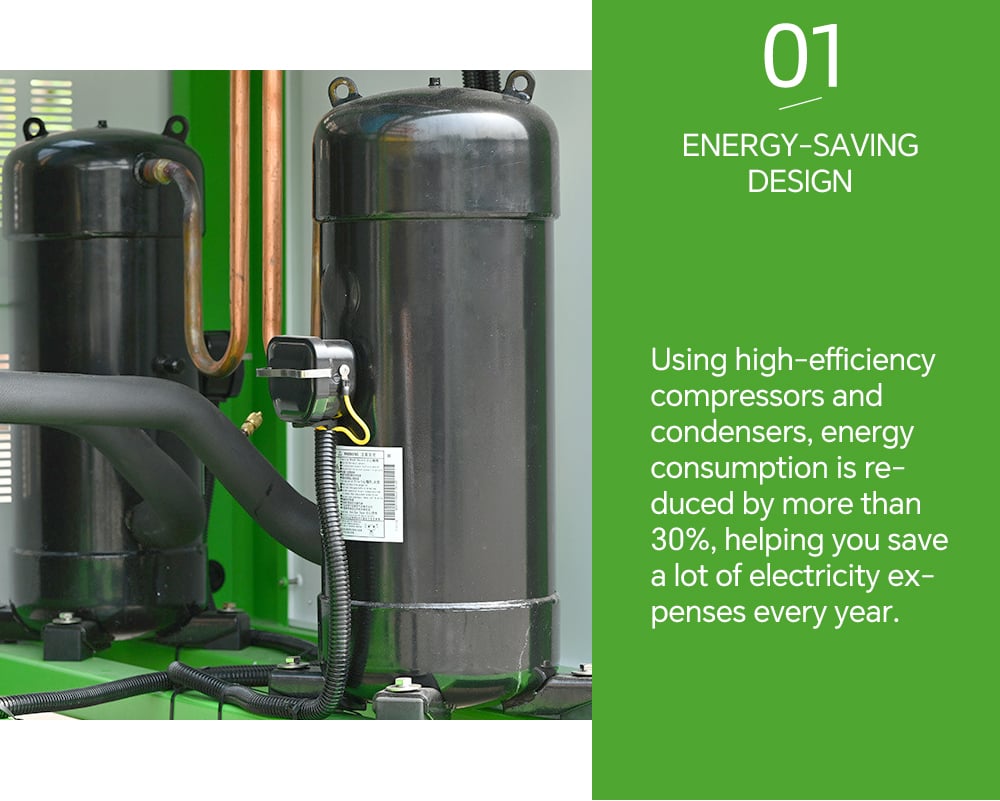

The unit adopts the international best quality flexible scroll refrigeration compressor, famous brand refrigeration accessories, matching large area efficient heat exchanger, combined with the best system design, to ensure the unit heat exchange efficient play.

Advanced clean manufacturing assembly technology, highly reliable electrical control unit, professional control procedures, to ensure the long-term stable operation of the unit.






Product Description

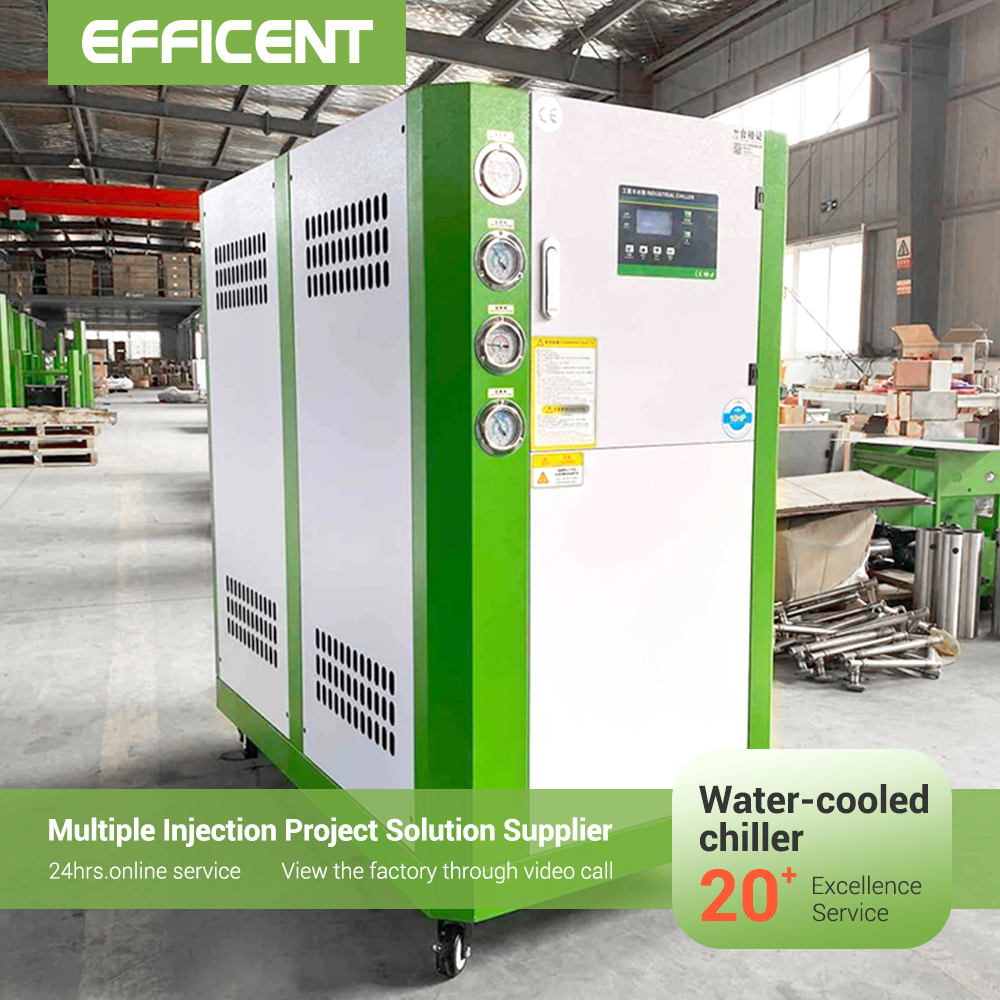

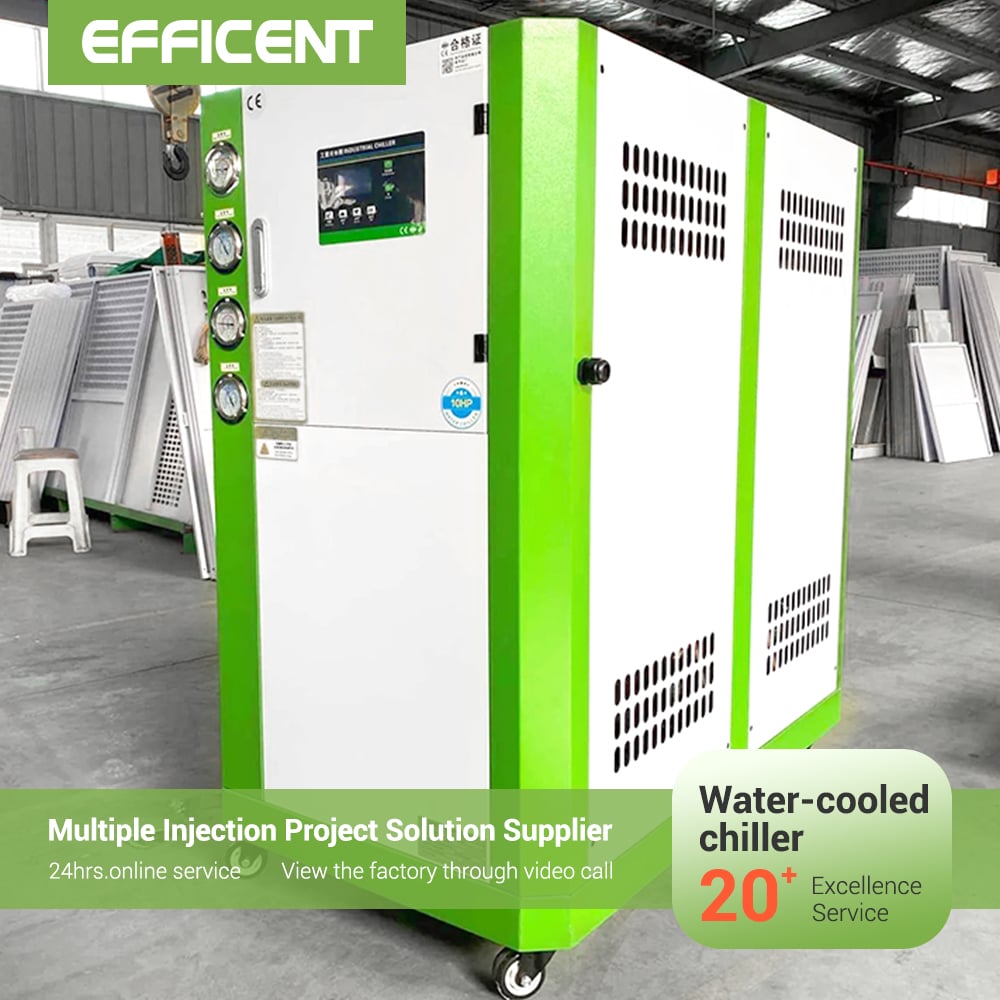

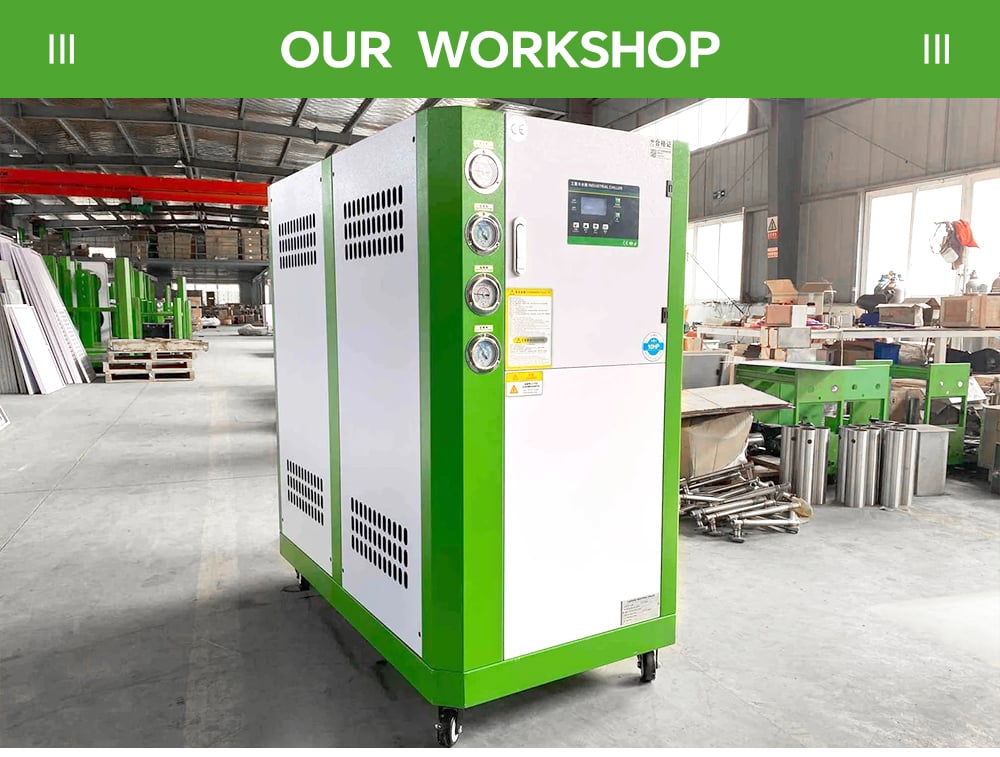

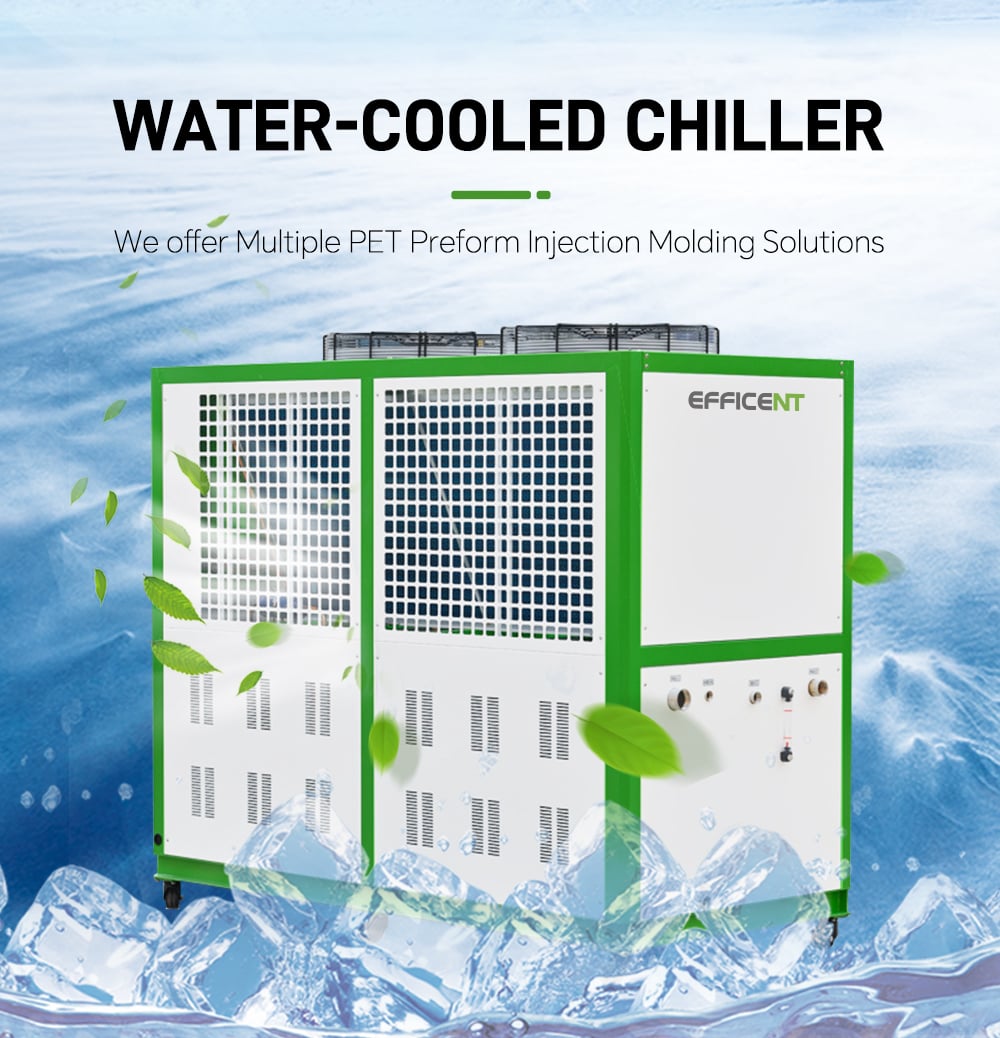

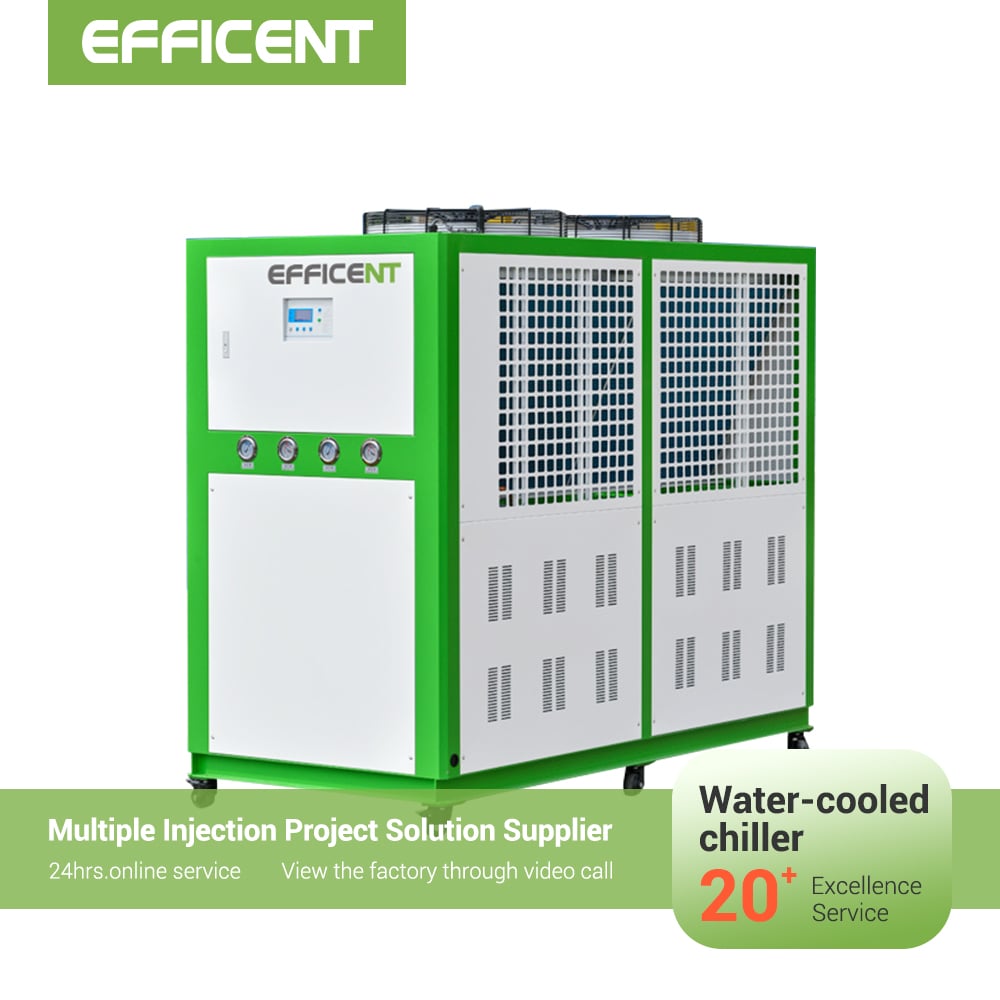

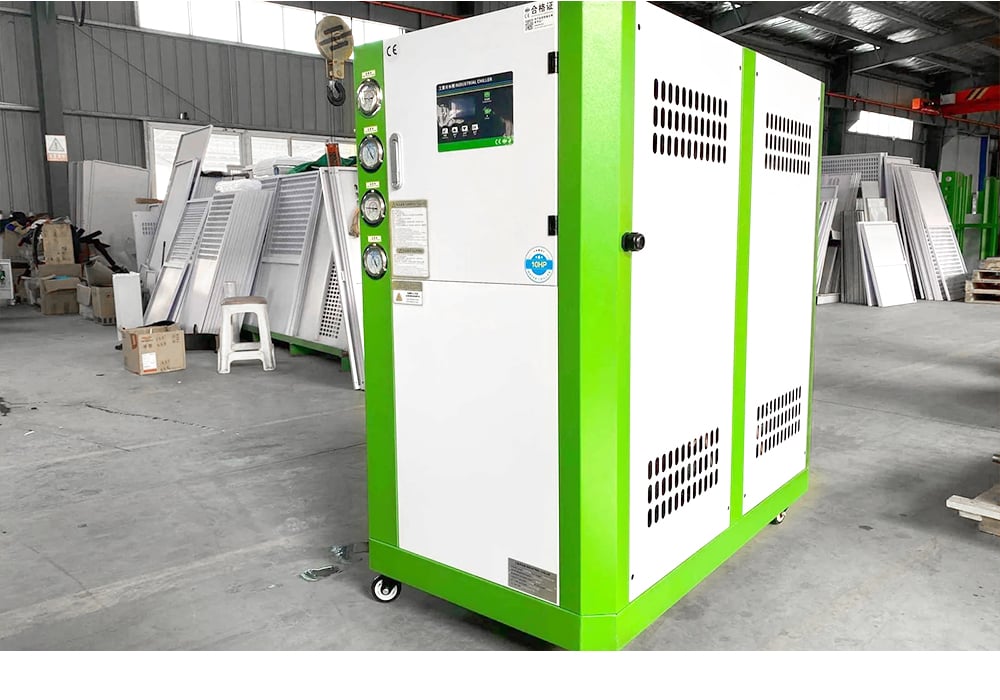

The water cooled chiller is to provide a cooling process in plastic molding , to improve quanlity of moulding products and shorted period of injection molding cycles

This air cooled chiller can be used directly, and no need cooling tower. it is the perfectsolution for any application, in particular for the plastic field, such as injection molding extrusion(sheet & profile), blow molding, thermoforming, PET, plastic film and otherindustrial field:electroplating(surface treatment), medicine, chemical, hydraulic systemleaser, shoe making, electronic and so on.




Re-define the PET Preform Injection Molding Machine

As the competition in the PET preform market becomes more and more intense, and the profit becomes less, the transformation and upgrading of the preform production process and cost control have become the top prionty to all PET relevant products manufacturers. The two core factors that restrict the production cost of preforms are the cycle time and energy consumption.Therefore, the requirements for the cycle time and energy consumption of the PET lMM getting higher and higher. Most of the injection molding machines used on the market are from general-purpose lMM, only by simply changing the screw & barrel unit, not specially desgned for PET preform mold and PET material. EFFlCIENT has been focusing on high-speed preform injection molding system for many years, and has successfully developed a series of special PET injection molding machines in an essential sense. These special high speed PET injection molding machines can help our clients solve this difficult problems from the root.


Technical Specifications High-Speed Quick-Response Unit
Series Positioning High Output, Ultra-Fast Cycle Time Flexible Production, Superior Energy Efficiency -
Model Example HPET2300/388S7 KPET1200/288S7 -
Clamping Force 3,880 2,880 kN
Screw Diameter 83 67 mm
Shot Volume 1,974.2 1,007.5 cm³
Opening Strok 590 520 mm
Tie Bar Space 730 × 730 630 × 600 mm
Motor Power 95.7 (39.4 + 56.3) 27.8 kW
Efficiency Full-line Speed Boost 60%↑ Save energy 15%↑ -


Application Needs Recommended Series Core Reason
Large-scale, high-intensity production (e.g., 500ml water bottle preforms) HPET Series Designed specifically for high-speed cycles to maximize output per unit time and reduce unit cost.
Diversified, medium-scale production (e.g., cosmetics containers, pharmaceutical bottles) KPET Series Modular design enables fast mold changes, with excellent energy efficiency in non-continuous production.
Extra-large neck diameter and special preforms (e.g., wide-mouth jars, deep-cavity bottles) KPET Custom Machine Features a larger mold opening stroke and special mold-locking structure to accommodate complex mold requirements.
1. What products can this machine produce?
This solution is designed for high-performance packaging production and can be configured for PET preforms or selected PE/PP applications depending on the machine type and project requirement.
2. Which applications are suitable for?
Depending on the project configuration, this solution can support water and beverage preforms, edible oil packaging, daily chemical containers, wide-mouth packaging, and 3–5 gallon preform applications.
3. How do I know whether this machine is right for my production target?
The right model depends on your product type, material, cavity requirement, output target, and future expansion plan. Our team can recommend a suitable configuration based on your production goals.
4. How does this machine improve production efficiency?
According to our product presentation, the system is engineered to reduce cycle time in clamping, injection, and ejection while increasing overall output. Servo-driven injection and advanced heating technologies further improve machine speed and performance.
5. How energy-efficient is this system?
Energy saving is one of the key strengths of this solution. The machine design highlights optimized motor and hydraulic performance, while advanced injection and heating technologies help reduce energy consumption and lower operating costs.
6. Do you provide only the machine, or can you support a complete line?
In addition to the core molding system, we can also support complete solution planning with molds, robotics, auxiliary equipment, and smart factory data platforms for customers seeking more integrated production systems.

Need a machine recommendation for your specific product?

Send us your application, output target, and production goals, and our team will recommend a suitable solution for your project.
